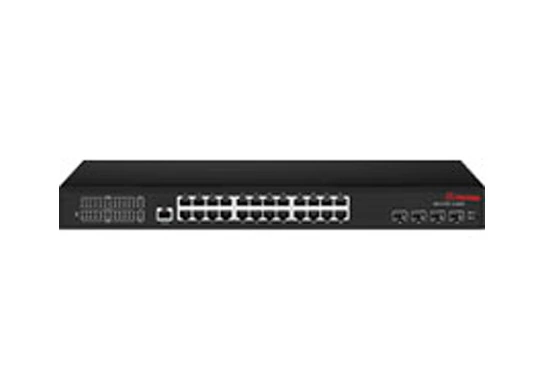

Unmanaged 4-Port 10G SFP + 24-Port 1G Electrical PoE Switch

The network switch is a high performance Ethernet access device developed by Beijing Fibridge. It provides 24 1000Mbps Electrical ports (PoE optional) and 4 10Gbps SFP ports. The product is embedded with power module, providing 220VAC or DC36-72V input for options. The switch supports PoE+ power supply. Fibridge F6 series applies compact desktop design. With small size, light weight, it can be easily installed on desktop or in cabinet.

Contact

Unmanaged 4-Port 10G SFP + 24-Port 1G Electrical PoE Switch Specification


Network Characteristics
Ethernet ProtocolIEEE802.3/802.3u/802.3x/802.3Z/802.3AB store-and-forward
Flow controlIEEE802.3x flow control, Back pressure flow control
PortsOptical Port: 1000MBase-FX, 10GBase-FX  SM/MM SC/FC/SFP optional
Electrical Port: 10/100/1000MBase-T(X) auto-adapt Ethernet RJ45 connector
VLAN802.1Q standard VLAN
MAC Adress16K
Jumbo frameMax 12K Jumbo frame
Cache64MB
Switch Capacity336Gbps/3.36Tbps
Packet Forwarding Rate124Mpps
Optical Characteristics
Optical ConnectorSC/FC/SFP optional
Fiber coresSingle / Dual core transmission
Wavelength1310nm/1550nm（850nm）
Fiber modeSingle Mode / Multimode
Environmental Characteristics
Temperature & HumidityWorking temperature：-10℃～50℃
Storage temperature：-40℃～75℃
Working humidity：10%～90% RH No condensation
Storage humidity：5%～90% RH No condensation
PowerAC 100-240V/50-60Hz embedded switch power，
DC-36~-72V external DC power
MTBF≥100000 H
Mechanical Characteristics
Power dissipation≤30W, PoE：370W




Unmanaged 4-Port 10G SFP + 24-Port 1G Electrical PoE Switch Features

  • Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.1p store-and-forward.

  • MAC Static configuration and dynamic learning, IEEE802.1AE Macsec security control.

  • Support VLAN, GVRP, QinQ, voice VLAN.

  • Support STP/RSTP/MSTP/EAPS/ERPS.

  • Support IGMPv1/2/3 and MLDv1/2 Snooping.

  • BVSS Virtual cluster.

  • Support IPv4/IPv6.

  • Support static routing, RIP, OSPF dynamic routing, VRRP.

  • Support DHCP.

  • Support L2/L3/L4 ACL, IPv4/IPv6 ACL, VLAN ACL.

  • Support QoS, traffic classification, CAR traffic restriction/monitor/shape, DSCP.

  • Support safe visit control, prevent DDos Support RADIUS/TRCACS+.

  • Support port isolation, port security, IP+MAC+ port bunding.

  • Support IEEE802.1X certified.

  • Support static/LACP link aggregation, UDLD, OAM, ISSU.

  • Support RMON.

  • Obtain ISO9000 quality system certificate.

  • Pass the ministry of public security testing.

  • Obtain network qualification certificate.
