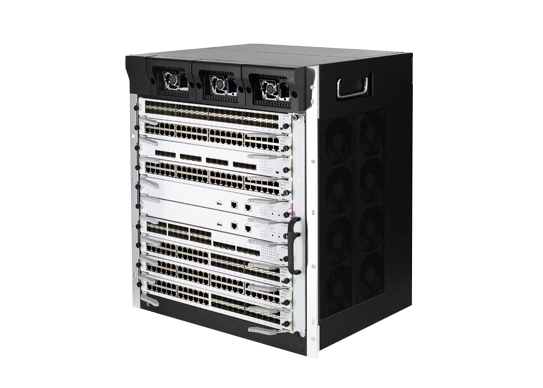

ch800 10 right 543
ch800 10 right 543

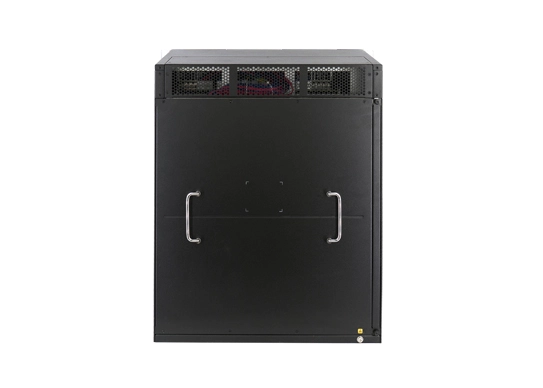

ch800 10 back 543
ch800 10 left 543

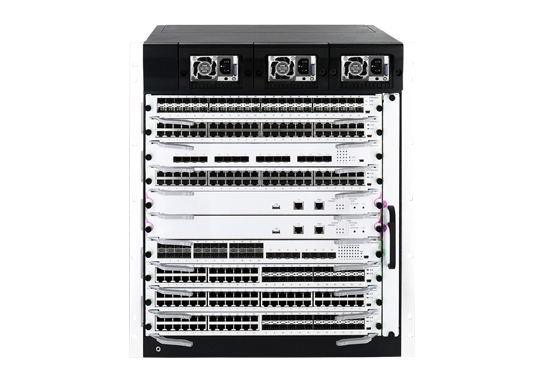

ch800 10 543

Managed Carrier Grade Core Switch F6CH800-10

Fibridge F6CH800-10 carrier grade series applies advanced distributed multiple level switch matrix construction. Based on line speed switch service which provides high performance, it furtherly combines multiple types of network functions, such as IPv6, MPLS VPN, network security, flow analysis, virtualization, etc. ,together with a variety of reliable technologies, such as constantly upgrade, uninterrupted forward, grace reset, redundancy protection, ensures uninterrupted communication ability to longest time. The chassis provides 10 slots, including 8 service cards and 3 power slots. The chassis applies  AC 100-240V or DC 48V power supply, operates under working temperature of -10ºC~+50ºC, 10%~90%(no condensation).

Specification of Managed Carrier Grade Core Switch F6CH800-10

Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3Z/802.3AB storage and forward
Flow ControlIEEE802.3x flow control, back pressure flow control
Network InterfaceOptical port: 1000MBase-FX SM/MM SFP optical ports
10GBase-FX SM/MM SFP+ optical ports
40GBase-FX SM/MM QSFP optical ports
Ethernet port: 10/100/1000M/2.5GBase-T(X) auto adaptive Ethernet RJ45
VLAN802.1Q standard VLAN
MAC Addresses64K
Jumbo FrameMax 16K
Cache512Mbit
Packet Buffer27.6/153.6Tbps
Packet Forwarding Rate3600/48960Mpps
ManagementWeb, SNMP V1/V2/V3, Console, Telnet
Optical Characteristics
Optical InterfaceSFP+
Fiber Core CountSimplex/duplex
Wavelength1310nm/1550nm(850nm)
Fiber ModeSM/MM
Environmental Characteristics
Temperature & HumidityWorking temperature: 0ºC~50ºC
Storage temperature: -20ºC~70ºC
Working humidity:10%~90% RH No condensation
Storage humidity:5%~95% RH No condensation
PowerAC 100-240V/50-60Hz embedded switch power
DC48V external DC power
MTBF≥100000 hours
Mechanical Characteristics
Dimension482 ×370×530mm
Weight25.5kg


Features of Managed Carrier Grade Core Switch F6CH800-10

  • Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.1p storage and forward

  • MAC static configuration and dynamic learning, black hole MAC, IEEE802.1AE Macsec security control

  • Support VLAN,GVRP,QinQ,voice VLAN;

  • Support STP/RSTP/MSTP/EAPS/ERPS/VRRP;

  • Support IGMPv1/2/3 and MLDv1/2 Snooping,PIM-SM,PIM-DM;

  • Support IPv4/IPv6;

  • Support static routing, RIP, OSPF, IS-IS dynamic routing, strategy routing

  • Support MCE function

  • Support MPLS VPN,MPLS OAM;

  • Support manual tunnel, ISATAP tunnel, 6to4 tunnel

  • Support QoS,flow classification, CAR flow limit/monitor/shaping, DSCP

  • Support DHCP

  • Support L2/L3/L4 ACL,IPv4/IPv6 ACL,VLAN ACL;

  • Support safe visit control, prevent DDos, support RADIUS, BDTRCACS+

  • Support port isolation, port security, IP+MAC+ port bunding

  • Support IEEE802.1X certificate

  • Support static/LACP link aggregation, OAM, ISSU;

  • Support ZTP zero touch configuration, Web/Console/Telnet/SSH2.0

  • Support SNMP V1/V2.V3,TFTP upload and download management

  • Support RMON;

  • Support VSS Virtual cluster,VSS virtual technology, FCOE

  • Support DDM

  • Obtain network qualification certificate


Ordering Information of Managed Carrier Grade Core Switch F6CH800-10

ModelPortManagement
F6CH800-10Slots: 10, service slot: 8WEB, SNMP, CLI
ES68-24GS24GT24-port Giga OPT(SFP)service card, 24-Port Giga Ethernet(RJ45)
ES68-48GT48-Port Giga Ethernet(RJ45)service card
ES68-48GS48-Port Giga OPT(SFP)service card
ES68-24GS8TS24-Port Giga OPT(SFP)8-Port 10G OPT(SPF+)service card
ES68-24GT8TS24-Port Giga Ethernet(RJ45)8-Port 10G OPT(SPF+)service card
ES68-16TS16-Port 10G OPT(SFP+)service card
ES68-4QS4-Port 40G OPT(QSFP)service card
