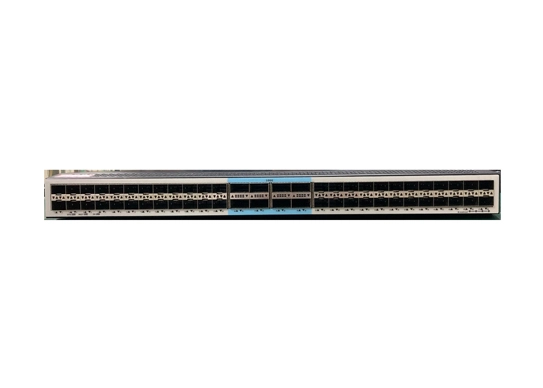

Managed 8 100G Opt and 48 25G Opt Switch F6E800YC-488

FIBRIDGE F6E800YC-488  series layer3 switch is a high-performance switch is built based on Ethernet switch IC CTC8180, support multiple ports. With CentecOS system software, F6-5800-E680 supports mainstream protocol standard and application program for convenient deployment and management.  The series applies localization self-controllable design solutions. The switch applies 1U19'' chassis, with fans for heat radiation.


The chassis applies AC 100-240V or DC -40--72V power supplies. Its working temperature is 0ºC~+45ºC, humidity is 10%~90%(no condensation).

Contact

Specification of Managed 8 100G Opt and 48 25G Opt Switch F6E800YC-488

Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3Z/802.3AB storage and forward
Flow ControlIEEE802.3x flow control, back pressure flow control
Network InterfaceOptical port: 1000MBase-FX, 10GBase-FX SM/MM SC/FC/SFP optional
                     25GE SFP28 port, 40GE QSFP+ port
                     100GE QSFP28 port
Ethernet port: 10/100/1000MBase-T(X)auto adaptive Ethernet RJ45 port
VLAN802.1Q standard VLAN
MAC Addresses122K
Jumbo FrameMax 9600Bytes
Cache36MB
Packet Buffer6.4Tbps
Packet Forwarding Rate3571.20Mpps
ManagementWeb, SNMP V1/V2/V3, Console, Telnet
Optical Characteristics
Optical InterfaceSFP+, QSFP
Fiber Core CountSimplex/duplex
Wavelength1310nm/1550nm(850nm)
Fiber ModeSM/MM
Environmental Characteristics
Temperature & HumidityWorking temperature: 0ºC~50ºC
Storage temperature: -20ºC~70ºC
Working humidity:10%~90% RH No condensation
Storage humidity:5%~95% RH No condensation
PowerAC 100-240V/50-60Hz embedded switch power
DC-40--60V external power supply
MTBF≥100000 hours
Hardware Configuration
Expanding sub-cardNone
Serial port type1 RJ45 type serial port
Out-band management port1 RJ45 out-band management port
In-band management portSupport
USB port1 standard USB port


Features of Managed 8 100G Opt and 48 25G Opt Switch F6E800YC-488

  • Support straight mode and storage-and-forward mode.

  • Support complete L2/L3 characters

  • Support NVGRE/ VXLAN/ GENEVE,Tunnel Routing & Bridging

  • Support STP/RSTP/MSTP/ELPS/ERPS/VRRP

  • Support VLAN, Por/MAC VLAN, QinQ

  • Support static configuration and dynamic learning, black hole MAC

  • Support static routing, RIP, OSPF, BGP, IS-IS, URPF, equal value routing

  • Support VRF,cross VRF ARP divulge

  • Support ICMP, ECMP, PIM

  • Support LDP, VPWS, VPLS, L2VPN/L3VPN, MPLS

  • Support QoS, flow management, speed rate limit

  • Support PFC, DCBX

  • Support AAA,prevent DDos support RADIUS/TRCACS+, COPP

  • Support port isolation, port security, IP+MAC+ port bunding

  • Support mirror analysis, Elephant Flow detection, burst flow/dynamic delay monitor and analysis

  • Support ACL

  • Support iStack

  • Support IPv4/IPv6

  • Support based on IEEE802.1X flow control

  • Support Web, SNMP, CLI, Telnet, SmartConfg management

  • Support NVGRE, VXLAN, GENEVE, SDN, EVPN, IPFIX

  • Support LLDP

  • Support link aggregation, cross device link aggregation

  • Based on port and based on MAC 802.1x certificate

  • Obtain network qualification certificate


Ordering Information of Managed 8 100G Opt and 48 25G Opt Switch F6E800YC-488

ModelDescriptionDimensionWeightManagement
F6E800C-3232 x 100GE QSFP28 port4.4 x 4 4.2 x 4 7.1 c m8.8 0 k gWEB, SNMP, CLI
F6E800Q-2424 x 40GE QSFP+ port4.4 x 4 4.2 x 4 5.1 c m8.8 5 k gWEB, SNMP, CLI
F6E800XQ-48648 x 10GE SFP+ port
6 x 40GE QSFP+ port		4.4 x 4 4.2 x 4 5.1 c m8.85 kgWEB, SNMP, CLI
F6E800YC-48848 x 25GE SFP28 port
8 x 100GE QSFP28 port		4.4 x 44.2 x 45.1 cm8.35 kgWEB, SNMP, CLI
F6E800YC-24424 x 25GE SFP28 port
4 x 100GE QSFP28 port		4.4 x 44.2 x 45.1 cm8.35 kgWEB, SNMP, CLI
F6E800XC-48848 x 10GE SFP+ port
8 x 100GE QSFP28 port		4.4 x 44.2 x 45.1 cm8.35 kgWEB, SNMP, CLI
