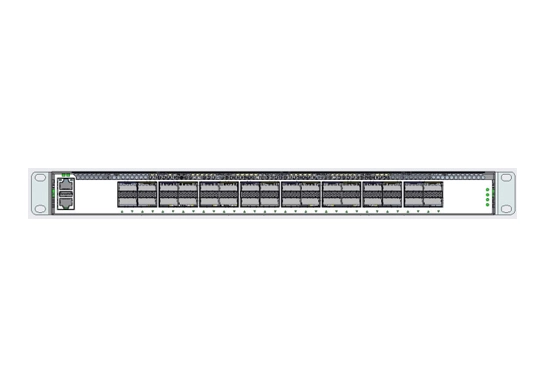

Managed 32 200G Osfp56 Layer3 Switch F7E800CD-32

Fibridge F7E800CD-32 series layer3 ethernet switch is high-performance switch constructed based on ethernet swtich IC CTC8180, support multiple types of port. With CentecOS system software, F7E800CD-32 supports mainstream protocol standard and application program, for convenient deployment and management. F7E800CD-32 series switches apply localization self-controllable design solutions, use 1U19 inch chassis, with fans for heat radiation. The chassis applies AC 100-240V or DC -40--60V power supply, supporting PoE. Its working temperature is 0ºC~+45ºC, humidity is %10~%90(no condensation).


Contact

Managed 32 20F7E800CD-320G Qsfp56 Layer3 Switch Specification

Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3Z/802.3AB storage and forward
Flow ControlIEEE802.3x flow control, back pressure flow control
Network InterfaceOptical port:
200GE QSFP56 port
Ethernet port:
10/100/1000MBase-T(X)auto adaptive Ethernet RJ45 port
VLAN802.1Q standard VLAN
MAC Addresses122K
Jumbo FrameMax 9600Bytes
Cache64MB
Packet Buffer12.8Tbps
Packet Forwarding Rate9.5 2 G p p s
ManagementWeb, SNMP V1/V2/V3, Console, Telnet
Optical Characteristics
Optical InterfaceSC/FC/SFP (optional)
Fiber Core CountSimplex/duplex
Wavelength1310nm/1550nm(850nm)
Fiber ModeSM/MM
Environmental Characteristics
Temperature & HumidityWorking temperature: 0ºC~45ºC
Storage temperature: -20ºC~70ºC
Working humidity:10%~90% RH No condensation
Storage humidity:5%~95% RH No condensation
PowerAC 100-240V/50-60Hz embedded switch power
DC-40--60V external power supply
MTBF≥100000 hours
Hardware Configuration
Expanding sub-cardNone
Serial port type1 RJ45 type serial port
Out-band management port1 RJ45 out-band management port
In-band management portSupport
USB port1 standard USB port


 Managed 32 20F7E800CD-320G Qsfp56 Layer3 Switch Features

  • Support straight mode and storage-and-forward mode.

  • Support complete L2/L3 characters

  • Support NVGRE/ VXLAN/ GENEVE,Tunnel Routing & Bridging

  • Support STP/RSTP/MSTP/ELPS/ERPS/VRRP

  • Support VLAN, Por/MAC VLAN, QinQ

  • Support static configuration and dynamic learning, black hole MAC

  • Support static routing, RIP, OSPF, BGP, IS-IS, URPF, equal value routing

  • Support VRF,cross VRF ARP divulge

  • Support ICMP, ECMP, PIM;

  • Support LDP, VPWS, VPLS, L2VPN/L3VPN, MPLS;

  • Support QoS, flow management, speed rate limit;

  • Support PFC, DCBX

  • Support AAA,prevent DDos support RADIUS/TRCACS+, COPP;

  • Support port isolation, port security, IP+MAC+ port bunding

  • Support mirror analysis, Elephant Flow detection, burst flow/dynamic delay monitor and analysis

  • Support ACL;

  • Support iStack

  • Support IPv4/IPv6;

  • Support based on IEEE802.1X flow control

  • Support Web, SNMP, CLI, Telnet, SmartConfg management

  • Support NVGRE, VXLAN, GENEVE, SDN, EVPN, IPFIX;

  • Support LLDP;

  • Support link aggregation, cross device link aggregation

  • Based on port and based on MAC 802.1x certificate

  • Obtain network qualification certificate


Ordering Information of Managed 32 20F7E800CD-320G Qsfp56 Layer3 Switch

ModelParameterManagement
F7E800CD-3232 x 200GE QSFP56 portsWEB,SNMP,CLI
