5e300txyq 16882 543
5e300txyq 16882 543

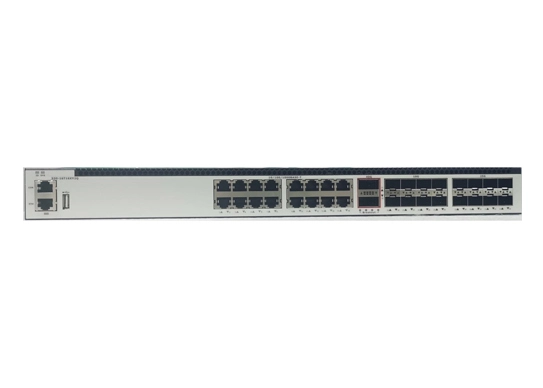

Managed 2 40G Qsfp+ and 8 25G SFP28 and 8 10G SFP+ and 16 1G Base-T Switch F5E300TXYQ-16882

FIBRIDGE F6-5800-E530  series layer3 switch(below quote as E530) is a high-performance switch is built based on Ethernet switch IC CTC7132, support multiple ports. With CentecOS system software, E530 supports mainstream protocol standard and application program for convenient deployment and management.  The series applies localization self-controllable design solutions. The switch applies 1U19'' chassis, with fans for heat radiation.


The chassis applies AC 100-240V or DC -40--60V power supplies. Its working temperature is 0ºC~+45ºC, humidity is 10%~90%(no condensation).

Contact

Specification of  Managed 2 40G Qsfp+ and 8 25G SFP28 and 8 10G SFP+ and 16 1G Base-T Switch F5E300TXYQ-16882

Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3Z/802.3AB storage and forward
Flow ControlIEEE802.3x flow control, back pressure flow control
Network Interface1000MBase-FX SFP optical port
10GBase-FX SFP+ optical port
25GE QSFP optical port
40GE QSFP+  optical port
100GE QSFP28 optical port
Ethernet port:
10/100/1000MBase-T(X)auto adaptive Ethernet RJ45 port

VLAN802.1Q standard VLAN
MAC Addresses96K
Jumbo FrameMax 9600Bytes
Cache9MB
Packet Buffer880G
Packet Forwarding Rate476.16Mpps
ManagementWeb, SNMP V1/V2/V3, Console, Telnet
Optical Characteristics
Optical InterfaceSFP+
Fiber Core CountSimplex/duplex
Wavelength1310nm/1550nm(850nm)
Fiber ModeSM/MM
Environmental Characteristics
Temperature & HumidityWorking temperature: 0ºC~50ºC
Storage temperature: -20ºC~70ºC
Working humidity:10%~90% RH No condensation
Storage humidity:5%~95% RH No condensation
PowerAC 100-240V/50-60Hz embedded switch power
DC-40--60V external power supply
MTBF≥100000 hours
Hardware Configuration
Expanding sub-cardNone
Serial port type1 RJ45 type serial port
Out-band management port1 RJ45 out-band management port
In-band management portSupport
USB port1 standard USB port


Features of  Managed 2 40G Qsfp+ and 8 25G SFP28 and 8 10G SFP+ and 16 1G Base-T Switch F5E300TXYQ-16882

  • Support straight mode and storage-and-forward mode.

  • Support complete L2/L3 characters

  • Support NVGRE/ VXLAN/ GENEVE,Tunnel Routing & Bridging

  • Support STP/RSTP/MSTP/ELPS/ERPS/VRRP

  • Support VLAN, Por/MAC VLAN, QinQ

  • Support static configuration and dynamic learning, black hole MAC

  • Support static routing, RIP, OSPF, BGP, IS-IS, URPF, equal value routing

  • Support VRF,cross VRF ARP divulge

  • Support ICMP, ECMP, PIM

  • Support LDP, VPWS, VPLS, L2VPN/L3VPN, MPLS

  • Support QoS, flow management, speed rate limit

  • Support PFC, DCBX

  • Support AAA,prevent DDos support RADIUS/TRCACS+, COPP

  • Support port isolation, port security, IP+MAC+ port bunding

  • Support mirror analysis, Elephant Flow detection, burst flow/dynamic delay monitor and analysis

  • Support ACL

  • Support iStack

  • Support IPv4/IPv6

  • Support based on IEEE802.1X flow control

  • Support Web, SNMP, CLI, Telnet, SmartConfg management

  • Support NVGRE, VXLAN, GENEVE, SDN, EVPN, IPFIX

  • Support LLDP

  • Support link aggregation, cross device link aggregation

  • Based on port and based on MAC 802.1x certificate

  • Obtain network qualification certificate


Ordering Information of  Managed 2 40G Qsfp+ and 8 25G SFP28 and 8 10G SFP+ and 16 1G Base-T Switch F5E300TXYQ-16882

ModelDescriptionDimensionWeightManagement
F5E300XC-24224 x 10GE SFP+ port
2 x 100GE QSFP28 port		4.4 x 44.2 x 37.8 cm5.95 kgWEB, SNMP, CLI
F5E300XQ-24224 x 10GE SFP+ port
2 x 40GE QSFP+ port		4.4 x 44.2 x 37.8 cm5.95 kgWEB, SNMP, CLI
F5E300TX-48448 x 1GE Base-T port
4 x 10GE SFP+ port		4.4 x 44.2 x 37.8 cm6.10 kgWEB, SNMP, CLI
F5E300SX-48448 x 1GE SFP port
4 x 10GE SFP+ port		4.4 x 44.2 x 37.8 cm6.25 kgWEB, SNMP, CLI
F5E300TX-24824 x 1GE Base-T port
8 x 10GE SFP+ port		4.4 x 44.2 x 24.5 cm3.60 kgWEB, SNMP, CLI
F5E300TXYQ-1688216 x 1GE Base-T port
8 x 10GE SFP+ port
8 x 25GE QSFP port
2 x 40GE QSFP+ port		4.4 x 44.2 x 37.8 cm6.10 kgWEB, SNMP, CLI
F5E300PX-48448x1GE Base-T port support P o E 8 0 2.3 a f/ a t
4x10GE SFP+ port		4.4 x 44.0 x 36.0 cm6.55 kgWEB, SNMP, CLI
F5E300PX-24424x1GE Base-T port
4x10GE SFP+ port		4.4 x 44.0 x 36.0 cm5.55 kgWEB, SNMP, CLI
F5E300TX-4124 x 1GE Base-T port
12 x 10GE SFP+ port		4.0 × 44.0 × 22.0 cm2.80 kgWEB, SNMP, CLI
F5E300QC-626 × 40GE QSFP+ port
2 × 100GE QSFP28 port		4.4 × 21.5 × 35.5 cm3.30 kgWEB, SNMP, CLI
F5E300MYQ- 4842

48 × 2.5GE Base-T port
4 × 25GE SFP28 port
2 × 40GE QSFP+ port		4.4 × 44.2 × 37.9 cm4.10 kgWEB, SNMP, CLI
F5E310MYQ- 4842

48 × 2.5GE Base-T port
4 × 25GE SFP28 port
2 × 40GE QSFP+ port		4.4× 44.2 × 29.0 cm4.10 kgWEB, SNMP, CLI
F5E310TYQ- 484248 × 1GE Base-T port
4 × 25GE SFP28 port
2 × 40GE QSFP+ port		4.4× 44.2 × 29.0 cm4.10 kgWEB, SNMP, CLI
