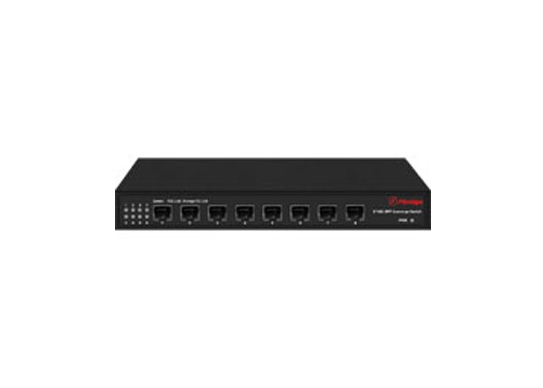

Managed 8-Port 10G SFP+ Switch

Beijing Fibridge Managed 8-Port 10G SFP+ switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has 8* 1G/2.5G/10Gbps optical ports.


With corresponding network management software, it can realize management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display. The switch can be built-in network management module, providing Ethernet network management interface, supports WEB management.


The device is built-in power module, providing  220V AC input or 12V DC input for options. The working temperature is -10ºC~+65ºC, working humidity is 5%~90%.


F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet.


Specification of Managed 8-Port 10G SFP+ Switch

Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3Z/802.3AB storage-and-forward
Flow ControlIEEE802.3x flow control, back pressure flow control
Network InterfaceOptical port:1G/2.5G/10GBase-FX SM/MM SFP+ optional
VLANIEEE 802.1q VLAN
MAC Addresses16K
Jumbo FrameMax 16K
Cache12Mbit
Packet Buffer160Gbps
Packet Forwarding Rate119Mpps
ManagementWEB
Optical Characteristics
Optical InterfaceSFP+
Fiber Core CountSingle core/dual cores
Wavelength1310nm/1550nm(850nm)
Fiber ModeSM/MM
Environmental Characteristics
Temperature & HumidityWorking temperature: -10ºC to +65ºC
Storage temperature: :-40ºC to 75ºC
Working humidity:5%~90% RH No condensation
Storage humidity: 5%~95% RH No condensation
PowerAC 100-240V/50-60Hz 260W Built-in switching power supply
MTBF≥50000 hours
Mechanical Characteristics
Dimension220mm*112mm*28mm 265mm*220mm*68mm
Net/Gross Weight0.71 /1.16kg


Features of Managed 8-Port 10G SFP+ Switch

  • Support IEEE802.3i/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3at/802.3af/802.1p storage-and-forward

  • Support Web management

  • Support enquiry and configuration to each port status, including link status, speed, duplex, close.

  • Support QOS

  • Support VLAN

  • Support port mirror, port isolation

  • Support loop test, loop prevention

  • Support IPv4

  • Support ring network STP, RSTP

  • Support IGMP intercept, DHCP intercept

  • Support link convergence

  • Support storms restrain

  • Support EEE

  • Support bandwidth control

  • Support jumbo frame

  • Support optical port hot plug

  • Support thunder proof 6kv

  • Protect level:IP30

  • ISO9000 qualified

  • Pass test by Ministry of Public Security

  • Obtain network qualification certificate.


Ordering Information of Managed 8-Port 10G SFP+ Switch

ModelPortManagement
F6C-5800-M8XS8*1G/2.5G/10G SFP+ portsWeb
