Name: Unmanaged 4-Port 10G SFP + 48-Port 1G Electrical PoE Switch
Brand: Beijing Fibridge Co., Ltd.

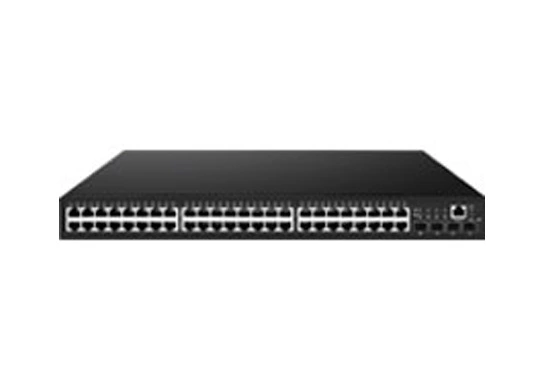

Unmanaged 4-Port 10G SFP + 48-Port 1G Electrical PoE Switch

The network switch is a high performance Ethernet access device developed by Beijing Fibridge. It provides 48 1000Mbps Electrical ports (PoE optional) and 4 10Gbps SFP ports. The product is embedded with power module, providing 220VAC or DC36-72V input for options. The switch supports PoE+ power supply. Fibridge F6 series applies compact desktop design. With small size, light weight, it can be easily installed on desktop or in cabinet.

Specification of Unmanaged 4-Port 10G SFP + 48-Port 1G Electrical PoE Switch

Network Characteristics
Ethernet Protocol	IEEE802.3/802.3u/802.3x/802.3Z/802.3AB store-and-forward
Flow control	IEEE802.3x flow control, Back pressure flow control
Ports	Optical Port: 1000MBase-FX, 10GBase-FX SM/MM SC/FC/SFP optional Electrical Port: 10/100/1000MBase-T(X) auto-adapt Ethernet RJ45 connector
Ports
VLAN	802.1Q standard VLAN
MAC Adress	32K
Jumbo frame	Max 12K Jumbo frame
Cache	64MB
Switch Capacity	336Gbps/3.36Tbps
Packet Forwarding Rate	148Mpps
Optical Characteristics
Optical Connector	SC/FC/SFP optional
Fiber cores	Single / Dual core transmission
Wavelength	1310nm/1550nm（850nm）
Fiber mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature：-10℃～50℃ Storage temperature：-40℃～75℃ Working humidity：10%～90% RH No condensation Storage humidity：5%～90% RH No condensation



Power	AC 100-240V/50-60Hz embedded switch power， DC-36~-72V external DC power
Power
MTBF	≥100000 H
Mechanical Characteristics
Power dissipation	≤30W, PoE: 370W

Features of Unmanaged 4-Port 10G SFP + 48-Port 1G Electrical PoE Switch

Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.1p store-and-forward.
MAC Static configuration and dynamic learning, IEEE802.1AE Macsec security control.
Support VLAN, GVRP, QinQ, voice VLAN.
Support STP/RSTP/MSTP/EAPS/ERPS.
Support IGMPv1/2/3 and MLDv1/2 Snooping.
BVSS Virtual cluster.
Support IPv4/IPv6.
Support static routing, RIP, OSPF dynamic routing, VRRP.
Support DHCP.
Support L2/L3/L4 ACL, IPv4/IPv6 ACL, VLAN ACL.
Support QoS, flow classification, CAR flow restriction/monitor/shape, DSCP.
Support safe visit control, prevent DDosSupportRADIUS/TRCACS+.
Support port isolation, port security, IP+MAC+ port bunding.
Support IEEE802.1X certified.
Support static/LACP link aggregation, UDLD, OAM, ISSU.
Support RMON.
Obtain ISO9000 quality system certificate.
Pass the Ministry of Public Security testing.
Obtain network qualification certificate.
