Name: 10-Port 1000M SFP + 8-Port 1000M Tx Managed Switch
Brand: Beijing Fibridge Co., Ltd.

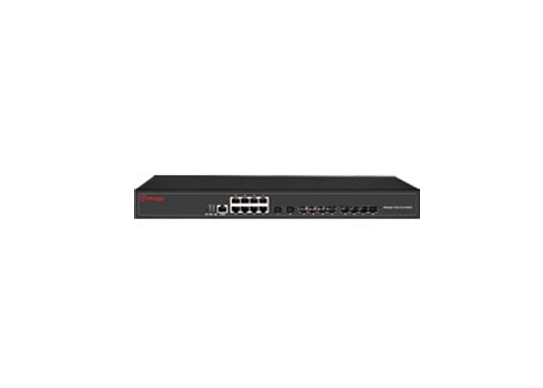

10-Port 1000M SFP + 8-Port 1000M Tx Managed Switch

Fibridge F6C-5800-M8GT10S series network switch is a high-performance Managed Ethernet access equipment developed by Beijing Fibridge. It has 8* 10/100/1000 Mbps Ethernet interface and 10*Gigabit FX ports.
With corresponding network management software, it can realize the management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display.
F6C-5800-M8GT10S series can be embedded with management module, providing Console and Ethernet two types of management connectors, supporting Console, WEB, Telnet and SNMP management.

The product is embedded with power module, providing 220VAC or DC12V for options. The switch provides PoE+ function for options, PoE status can be monitored and managed by remote management. The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet. The series' working temperature is -25ºC to +55ºC,10%~90%(no condensation).

10-Port 1000M SFP + 8-Port 1000M Tx Managed Switch Specification

Network Characteristics
Ethernet Protocol	Support IEEE802.3/802.3u/802.3x/802.3Z/802.3AB storage-and-forward
Flow Control	IEEE802.3x flow control, back pressure flow control
Network Interface	OPT: 1000MBase-FX Single/multimode SC/FC/SFP ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	802.1Q standard VLAN
MAC Addresses	12K
Jumbo Frame	Max 9K
Cache	4MB
Packet Buffer	52Gbps
Packet Forwarding Rate	38.688Mpps
Management	WEB, Telnet, Console, SNMP
Optical Characteristics
Optical Interface	SC/FC/SFP(Optional)
Fiber Core Count	Single / Dual core transmission
Wavelength	1310nm/1550nm(850nm)
Fiber Mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature: -20ºC to +55ºC Storage temperature: :-40ºC to 85ºC Working humidity:10%~90% RH No condensation Storage humidity: 5%~90% RH No condensation
Power	AC 100-240V/50-60Hz Built-in switching power supply DC12V 3A external DC power
MTBF	≥100000 hours

10-Port 1000M SFP + 8-Port 1000M Tx Managed Switch Features

Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.3at/
802.3af/802.1p storage-and-forward.
Meet the requirements of reliable work in harsh electrical environment.
Support enquiry and configuration to the status of each port, including connection status, rate, duplex, closed, Port.
Support link aggregation
Support flow control
Support VLAN;
Support port isolation.
Support port speed limit.
Support STP/RSTP/MSTP;
Support IGMPv1/2/3.
Support DoS protection
Support static routing.
Support system log.
Poe function is optional
Support overload protection.
Support reverse connection protection.
Support optical port hot plug.
IP 40 protection level.
Industrial and modular design ensures the product's reliability and flexibility.
ISO9000 qualified
Pass test by Ministry of Public Security
Obtain network qualification certificate.

Ordering Information of 10-Port 1000M SFP + 8-Port 1000M Tx Managed Switch

Model	Port	Management
F6C-5800-M8GT10S	810/100/1000M Ethernet RJ45 ports 1010G SFP+ optical ports	Web Telnet Console
