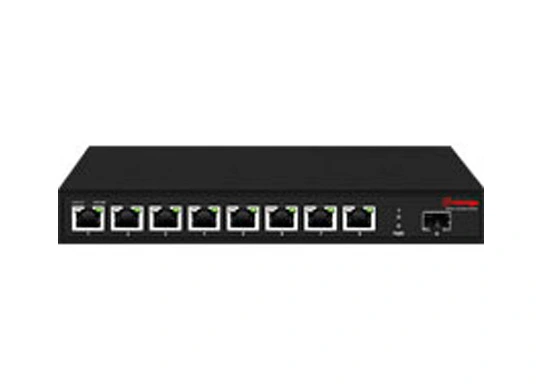

1-Port 1000M Fx + 8-Port 1000M Tx Unmanaged Switch

Fibridge F6-8GT1GX series network switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has 8 10 / 100/1000 mbps Ethernet interfaces and a 1000 mbps optical port. The device is built-in power module, you can choose 220V AC input or 12V DC input products. F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet. PoE is optional.

Contact

 1-Port 1000M Fx + 8-Port 1000M Tx Unmanaged Switch Specification


Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3az
Flow ControlIEEE802.3x flow control
Network InterfaceOPT: 1000MBase-FX Single/multimode SC/FC/SFP
ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLANNo
MAC Addresses4K
Huge FrameMax size 9216
CacheNO
Packet Buffer20Gbps
Packet Forwarding Rate14.48Mpps
ManagementNo
Optical Characteristics
Optical InterfaceSC/FC/SFP(Optional)
Fiber Core CountSingle / Dual core transmission
Wavelength1310nm/1550nm（850nm）
Fiber ModeSingle Mode / Multimode
Environmental Characteristics
Temperature & HumidityWorking temperature：-10℃～55℃
Storage temperature：-40℃～85℃
Working humidity：10%～90% RH No condensation
Storage humidity：5%～90% RH No condensation
PowerAC 100-240V/50-60Hz Built-in switching power supply，
DCDC48~56V 1.5A External power supply(PoE)
DC12V 1A External power supply
MTBF≥100000 hours




1-Port 1000M Fx + 8-Port 1000M Tx Unmanaged Switch Features

  • Support IEEE802.3/802.3u/802.3x/802.3az forward mode.

  • Reliable performance in harsh electrical environment.

  • Support Port auto-negotiation.

  • Support flow control.

  • Support Poe+ function.

  • Industrial & Modular design make the equipment reliable and flexible.

  • Support overload protection.

  • Anti-link protection.

  • Support optical hot plug.

  • Obtain ISO9000 quality system certificate.

  • Pass the ministry of public security testing.

  • Obtain network qualification certificate.
