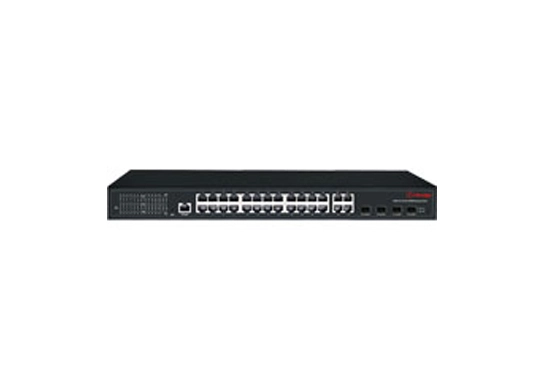

Managed 4 Giga Combo and 24 1000M PoE Switch F6C-5800-M24GTP4SC

Fibridge F6C-5800-M24GTP2SC series managed network switch is a high-performance Ethernet access equipment developed by Beijing Fibridge. It has 24* 10/100/1000 Mbps PoE Ethernet interface and 2*Gigabit FX.


With corresponding network management software, it can realize the management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display. The series can be embedded with management module, providing Console and Ethernet two types of management connectors, supporting Console, WEB, Telnet and SNMP management.


The device is built-in power module, you can choose 220V AC input or 48-56V DC input.The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet. The series' working temperature is 0ºC to +70ºC,10%~90(no condensation). The product supports PoE, outputs 2*BT+22*AF/AT.


Contact

Managed 4 Giga Combo and 24 1000M PoE Switch F6C-5800-M24GTP4SC Features

Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.1p store and forward

  • MAC static configuration and dynamic learning, IEEE802.1AE Macsec safe control

  • Support VLAN, GVRP, QinQ, voice VLAN

  • Support STP/RSTP/MSTP/EAPS/ERPS

  • Support IGMPv1/2/3 and  MLDv1/2 Snooping

  • Support IPv4/IPv6

  • Support static routing, RIP, OSPF dynamic routing

  • Support DHCP

  • Support L2/L3/L4 ACL,IPv4/IPv6 ACL,VLAN ACL

  • Support QoS, flow classification, CAR flow restrict/monitor/shaping, DSCP

  • Support safe visit control, prevent DDos support RADIUS/TRCACS+

  • Support port isolation, port security, IP+MAC+ port bunding

  • Support IEEE802.1X certificate

  • Support static/LACP link convergence, UDLD,OAM,ISSU

  • Support ZTP zero touch Provisioning, Web/Console/Telnet/SSH2.0

  • Support SNMP V1/V2.V3

  • Support TFTP upload and download management

  • Support RMON

  • Network access qualification certified


 Managed 4 Giga Combo and 24 1000M PoE Switch F6C-5800-M24GTP4SC PoE Features

  • Support IEEE802.3af and IEEE802.3at

  • POE++ IEEE802.3bt optional

  • IEEE802.3af standard 15.4w

  • IEEE802.3at standard 30w

  • Optional POE++ IEEE802.3bt max 90w

  • External POE Power Supply DC48/52v, external POE power adaptor up to 600w as accessory

  • Internal POE Power AC 90-240v,Maximum 1200w inside for 1U type

  • 4kv POE port anti-lightning


 Managed 4 Giga Combo and 24 1000M PoE Switch F6C-5800-M24GTP4SC Specification

Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3Z/802.3AB, storage-and-forward
Flow ControlIEEE802.3x flow control, back pressure flow control
Network InterfaceOPT: 1000MBase-FX Single/multimode SC/FC/SFP
ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLAN802.1Q standard VLAN
MAC Addresses12K
Jumbo FrameMax size 9k
Cache4MB
Packet Buffer336Gbps/3.36Tbps
Packet Forwarding Rate51Mpps
ManagementWeb, SNMP V1/V2/V3, Console, Telnet
Optical Characteristics
Optical InterfaceSC/FC/SFP(Optional)
Fiber Core CountSingle / Dual core transmission
Wavelength1310nm/1550nm(850nm)
Fiber ModeSingle Mode / Multimode
Environmental Characteristics
Temperature & HumidityWorking temperature: -10ºC to +50ºC
Storage temperature: -40ºC to 85ºC
Working humidity:10%-90% RH No condensation
Storage humidity: 5%-90% RH No condensation
PowerAC 100-240V/50-60Hz embedded switch power,
DC48~56V 260W external DC power(PoE)
DC12V 1A  external DC power (Not PoE)
MTBF≥100000 hours
Machinery Characteristics
Dimension440mm*290mm*45mm

515mm*375mm*95mm

Net/Gross Weight

3.43/4.15Kg


Ordering Information of Managed 4 Giga Combo and 24 1000M PoE Switch F6C-5800-M24GTP4SC

ModelPortsManagement
F6C-5800-M24GTP4SC24*10/100/1000MBase-T(X) RJ45 ports, PoE+ standard
4*1000MBase  Combo ports		Web,Telnet,Console
