Name: Managed 10-Port 1000M SFP and 16-Port 1000M Tx PoE Managed Switch F6C-5800-M16GTP10S
Brand: Beijing Fibridge Co., Ltd.

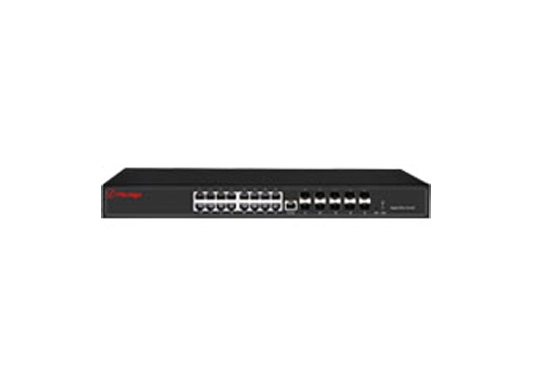

Managed 10-Port 1000M SFP and 16-Port 1000M Tx PoE Managed Switch F6C-5800-M16GTP10S

Fibridge F6C-5800-M16GTP10S series managed network switch is a high-performance Managed Ethernet access equipment developed by Beijing Fibridge. It has 16* 10/100/1000 Mbps PoE Ethernet interface and 10*Gigabit FX ports.

With corresponding network management software, it can realize the management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display. F6C-5800-M16GTP10S series can be embedded with management module, providing Console and Ethernet two types of management connectors, supporting Console, WEB, Telnet and SNMP management.

The product is embedded with power module, providing 220VAC or DC12V for options. The series provides PoE+ function for options, PoE status can be monitord and managed by remote management.The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet. The series' working temperature is -25ºC to +55ºC,10%~90(no condensation).

Managed 10-Port 1000M SFP and 16-Port 1000M Tx PoE Managed Switch F6C-5800-M16GTP10S Features

Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.3at/802.3af/802.1p storage-and-forward.Support SNMP, Telnet, Web and CLI Management Methods
Support enquiry and configuration to the status of each port, including connection status, rate, duplex, closed, Port
Support link aggregation
Support flow control
Support VLAN
Support port isolation
Support port speed limit
Support STP/RSTP/MSTP
Support IGMPv1/2/3
Support DoS protection
Support static routing
Support system log
PoE outputs 2*BT+14*AF/AT
Support overload protection
Support reverse connection protection
Support optical port hot plug
IP 40 protection level
Industrial and modular design ensures the product's reliability and flexibility
ISO9000 qualified
Pass test by Ministry of Public Security
Obtain network qualification certificate

PoE Features of Managed 10-Port 1000M SFP and 16-Port 1000M Tx PoE Managed Switch F6C-5800-M16GTP10S

Support IEEE802.3af and IEEE802.3at
POE++ IEEE802.3bt optional
IEEE802.3af standard 15.4w
IEEE802.3at standard 30w
Optional POE++ IEEE802.3bt max 90w
External POE Power Supply DC48/52v, external POE power adaptor up to 600w as accessory
Internal POE Power AC 90-240v,Maximum 1200w inside for 1U type
4kv POE port anti-lightning

Managed 10-Port 1000M SFP and 16-Port 1000M Tx PoE Managed Switch F6C-5800-M16GTP10S Specification

Network Characteristics
Ethernet Protocol	Support IEEE802.3/802.3u/802.3x/802.3Z/802.3AB storage-and-forward
Flow Control	IEEE802.3x flow control, back pressure flow control
Network Interface	OPT: 1000MBase-FX Single/multimode SC/FC/SFP ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	802.1Q standard VLAN
MAC Addresses	12K
Jumbo Frame	Max 9K
Cache	4MB
Packet Buffer	52Gbps
Packet Forwarding Rate	38.688Mpps
Management	WEB, Telnet, Console
Optical Characteristics
Optical Interface	SC/FC/SFP(Optional)
Fiber Core Count	Single / Dual core transmission
Wavelength	1310nm/1550nm(850nm)
Fiber Mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature: -25ºC to +55ºC Storage temperature: :-40ºC to 85ºC Working humidity:10%~90% RH No condensation Storage humidity: 5%~90% RH No condensation
Power	AC 100-240V/50-60Hz 260W Built-in switching power supply DC12V 3A external DC power
MTBF	≥100000 hours
Machinery Characteristics
Dimension	440mm290mm45mm 515mm375mm95mm
Net/Gross Weight	3.7/4.5Kg

Ordering Information of Managed 10-Port 1000M SFP and 16-Port 1000M Tx PoE Managed Switch F6C-5800-M16GTP10S

Model	Port	Management
F6C-5800-M16GTP10S	1610/100/1000M Ethernet RJ45 ports 2BT+14AF/AT 101000MBase-FX SFP	Web Telnet Console

Fibridge team is here to help!

If you have any product inquiries for Network Switches, please feel free to contact us.
