f6c 5800 m2gt8s 543
f6c 5800 m2gt8s 543

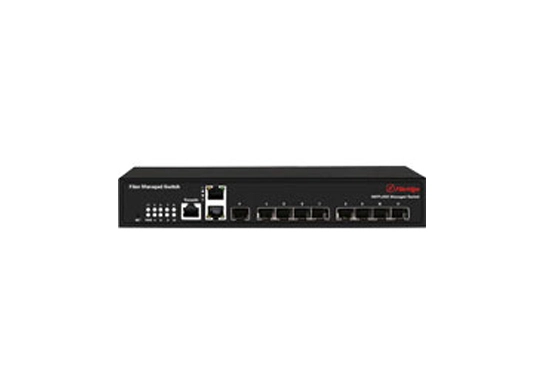

8-Port 1000M SFP + 2-Port 1000M Tx Managed Switch

Fibridge F6C-5800-M2GT8S series network management switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has 2 10/100/1000 Mbps Ethernet interfaces and 8 1000 Mbps optical ports. With corresponding network management software, it can realize management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display. The switch can be built-in network management module, providing Console and Ethernet two kinds of network management interface. The product supports Console, WEB, Telnet, SNMP and other network management methods. The device is built-in power module, providing  220V AC input or 12V DC input for options. F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet.

Contact

 8-Port 1000M SFP + 2-Port 1000M Tx Managed Switch Specification

Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3Z/802.3AB storage-and-forward
Flow ControlIEEE802.3x flow control, back pressure flow control
Network InterfaceOPT: 1000MBase-FX Single/multimode SC/FC/SFP
ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLANIEEE 802.1q VLAN, protocol VLAN, Voice VLAN
MAC Addresses12K
Jumbo FrameMax 9K
Cache64Mbit
Packet Buffer128Gbps
Packet Forwarding Rate95Mpps
ManagementWEB, Telnet, Console, SNMP
Optical Characteristics
Optical InterfaceSC/FC/SFP(Optional)
Fiber Core CountSingle / Dual core transmission
Wavelength1310nm/1550nm(850nm)
Fiber ModeSingle Mode / Multimode
Environmental Characteristics
Temperature & HumidityWorking temperature: 0ºC to +70ºC
Storage temperature: :-40ºC to 85ºC
Working humidity:10%~90% RH No condensation
Storage humidity: 5%~90% RH No condensation
PowerAC 100-240V/50-60Hz 260W Built-in switching power supply
DC12V 1A external DC power
MTBF≥100000 hours


 8-Port 1000M SFP + 2-Port 1000M Tx Managed Switch Features

  • Support IEEE802.3i/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3at/802.3af/802.1p storage-and-forward

  • Meet requirements of reliable work in harsh electrical environment

  • Support SNMP, Telnet, Web and CLI management

  • Support enquiry and configuration to the status of each port, including connection status, rate, duplex, closed, Port.

  • Support port mirror

  • Support flow control

  • Support storm control

  • Support QOS

  • Support port VLAN, protocol VLAN, MAC VLAN,voice VLAN;

  • Support link loop test

  • Support IP/MAC/Port bunding

  • Support ACL

  • Support Ring network STP, RSTP, MSTP, ERPS

  • Support LLDP protocol

  • Support powerful inquiry and management function to historical alarm information and log information

  • Support flow statistics function, display each port's communication status real time

  • Support layer3 port and routing function

  • Support attack proof configuration

  • Support overload protection.

  • Support reverse connection protection

  • Support optical port hot plug.

  • ISO9000 qualified

  • Pass test by Ministry of Public Security

  • Obtain network qualification certificate.


Ordering Information of 8-Port 1000M SFP + 2-Port 1000M Tx Managed Switch

Model

Port

Management
F6C-5800-M2GT8S

2*10/100/1000MBase-T(X) auto adapt  RJ45

8*1000MBase-FX SFP

Web
Telnet
Console
