Name: F6-8GT1GX DIN-RAIL Unmanaged 1-Port 1000M Fx + 8-Port 1000M Tx Industrial Switch
Brand: Beijing Fibridge Co., Ltd.

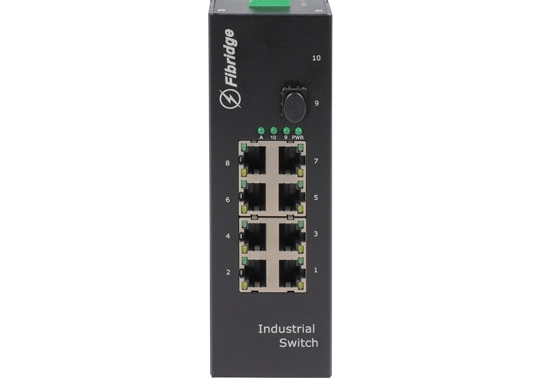

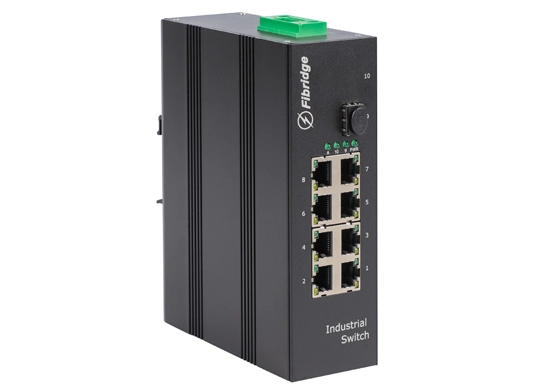

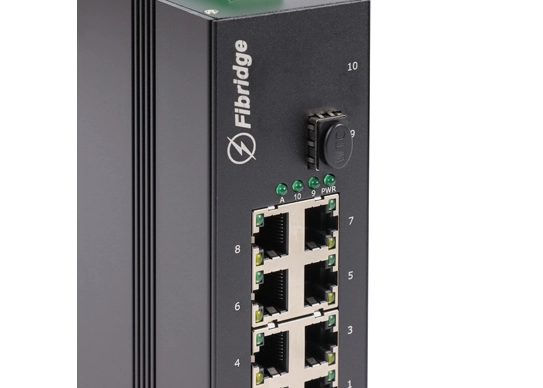

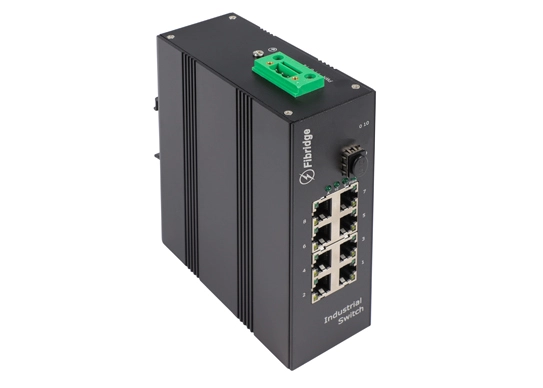

F6-8GT1GX DIN-RAIL Unmanaged 1-Port 1000M Fx + 8-Port 1000M Tx Industrial Switch

Fibridge F6-8GT1GX series industrial switch is a high-performance Ethernet access equipment developed by Beijing Fibridge. It has 8* 10/100/1000 Mbps Ethernet interfaces and 1* 1000 Mbps optical ports. The device is built-in power module, providing 220V AC input or 12V DC input options. Poe+ function is optional. The device operates at a temperature of -40ºC~+85ºC Range and a humidity of %10~%90(No condensation).The F6 series is compact desktop design, small size, light weight, easy to place in desktop or cabinet.

Specification of F6-8GT1GX DIN-RAIL Unmanaged 1-Port 1000M Fx + 8-Port 1000M Tx Industrial Switch

Network Characteristics
Ethernet Protocol	Support IEEE802.3/802.3u/802.3x/802.3az storage and forward
Flow Control	IEEE802.3x flow control, back pressure flow control
Network Interface	OPT: 1000MBase-FX Single/multimode SC/FC/SFP ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	Support IEEE 802.1q VLAN,QinQ,Protocol VLAN
MAC Addresses	16K
Jumbo Frame	4K
Cache	No
Packet Buffer	20Gbps
Packet Forwarding Rate	14.88Mpps
Management	No
Optical Characteristics
Optical Interface	SC/FC/SFP(Optional)
Fiber Core Count	Single / Dual core transmission
Wavelength	1310nm/1550nm(850nm)
Fiber Mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature: -40ºC~85ºC Storage temperature:-40ºC~85ºC Working humidity:10%~90% RH No condensation Storage humidity:5%~90% RH No condensation

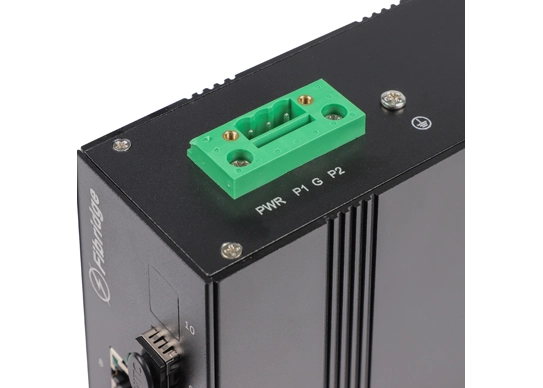

Power	AC 100-240V/50-60Hz Built-in switching power supply, DC48~56V 1.5A External power supply(PoE), DC12V 1A External power supply
MTBF	≥100000 hours
Mechanical Characteristics
Structural Dimension	163× 122× 52mm
Product Weight	0.8kg

Features of F6-8GT1GX DIN-RAIL Unmanaged 1-Port 1000M Fx + 8-Port 1000M Tx Industrial Switch

Support IEEE802.3/802.3u/802.3x/802.3az storage and forward mode;
Meet the requirements of reliable work in harsh electrical environment;
Support Port auto-negotiation;
Support flow control;
Support Poe+ optional
Reverse-link protection
Support optical port hot plug;
Level of protection:IP40;
Pass ISO9000 quality system certification;
Pass test by the Ministry of Public Security;
Pass network access qualification certification

Ordering Information of F6-8GT1GX DIN-RAIL Unmanaged 1-Port 1000M Fx + 8-Port 1000M Tx Industrial Switch

Model	Port	Management
F6-8GT1X	810/100/1000M Ethernet RJ45 ports 11G SFP optical ports	N/A
