Name: F6-5800-4TP1FX Unmanaged 1 100M Opt and 4 100M PoE Industrial Switch
Brand: Beijing Fibridge Co., Ltd.

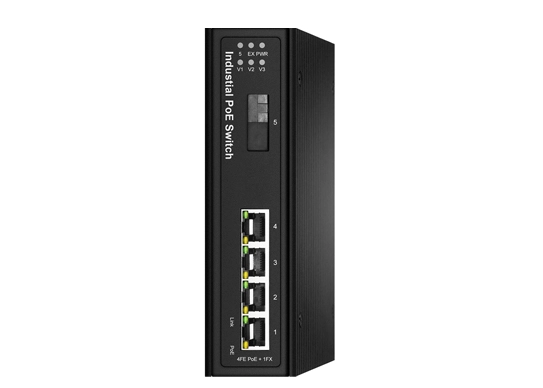

F6-5800-4TP1FX Unmanaged 1 100M Opt and 4 100M PoE Industrial Switch

Fibridge F6-5800-4TP1FX series network industrial switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has 4* 10/100 mbps Ethernet PoE interface and 1* 1000 mbps optical port.

The device is built-in power module, you can choose 220V AC input or DC12-57V input products.The switch supports PoE, applies 40-57VDC power supply, supports 1*af/at/bt and 3*af/at.

The device operates at a temperature of -40ºC~+85ºC Range and a humidity of %10~%90(No condensation).The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet.

Specification of F6-5800-4TP1FX Unmanaged 1 100M Opt and 4 100M PoE Industrial Switch

Network Characteristics
Ethernet Protocol	Support IEEE802.3/802.3u/802.3x/802.3az straight mode
Flow Control	IEEE802.3x flow control, back pressure flow control
Network Interface	OPT: 100MBase-FX Single/multimode SC/FC/SFP/1*9
Network Interface	ETH: 10/100MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	No
MAC Addresses	1K
Jumbo Frame	No
Cache	448Kbit
Packet Buffer	1.6Gbps
Packet Forwarding Rate	1.19Mpps
Management	No
Optical Characteristics
Optical Interface	SC/FC/SFP/1*9(Optional)
Fiber Core Count	Single / Dual core transmission
Wavelength	850nm
Fiber Mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature: -40ºC~85ºC
	Storage temperature:-40ºC~85ºC
	Working humidity:10%~90% RH No condensation
	Storage humidity:5%~90% RH No condensation
Power	AC 100-240V/50-60Hz Built-in switching power supply,
	DC48~56V 260W External power supply(
	PoE)
	DC12V 1A External power supply(
	not PoE)
MTBF	≥100000 hours

Features of F6-5800-4TP1FX Unmanaged 1 100M Opt and 4 100M PoE Industrial Switch

Support IEEE802.3/802.3u/802.3x/802.3az straight mode;
Meet the requirements of reliable work in harsh electrical environment;
Support Ethernet Port auto-negotiation;
Industrial &Modular design make the equipment reliable and flexible;
Support overload protection;
Supports PoE, appling 40-57VDC power supply, supports 1*af/at/bt and 3*af/at.
Reverse-link protection is supported;
Support optical port hot plug;
Level of protection:IP40;
ISO9000 qualified;
Product Passes testing of the Ministry of Public Security;
Product obtains network qualification certificate.
