Name: F6-5800-6TP Unmanaged 6-Port 100M PoE Ethernet Industrial Switch
Brand: Beijing Fibridge Co., Ltd.

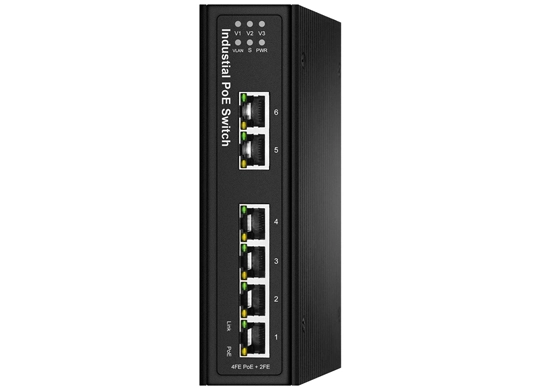

F6-5800-6TP Unmanaged 6-Port 100M PoE Ethernet Industrial Switch

Fibridge F6-5800-6TP series network industrial switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has 6* 10/100 mbps Ethernet PoE interface.

The device is built-in power module, you can choose 220VAC input or DC12-57V input products.The switch supports PoE, applies 40-57VDC power supply, supports 1*af/at/bt and 3*af/at.

The device operates at a temperature of -40ºC~+85ºC Range and a humidity of %10~%90(No condensation).The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet.

Specification of F6-5800-6TP Unmanaged 6-Port 100M PoE Ethernet Industrial Switch

Network Characteristics
Ethernet Protocol	Support IEEE802.3/802.3u/802.3x/802.3az straight mode
Flow Control	Not support
Network Interface	OPT: None
Network Interface	ETH: 10/100MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	No
MAC Addresses	1K
Jumbo Frame	No
Cache	No
Packet Buffer	2Gbps
Packet Forwarding Rate	1.488Mpps
Management	No
Optical Characteristics
Optical Interface	None
Fiber Core Count
Wavelength
Fiber Mode
Environmental Characteristics
Temperature & Humidity	Working temperature: -40ºC~85ºC
	Storage temperature:-40ºC~85ºC
	Working humidity:10%~90% RH No condensation
	Storage humidity:5%~90% RH No condensation
Power	AC 100-240V/50-60Hz Built-in switching power supply,
	DC 48~56V 260W (PoE)
	DC12V 1A External power supply(not PoE)
MTBF	≥100000 hours

Features of F6-5800-6TP Unmanaged 6-Port 100M PoE Ethernet Industrial Switch

Support IEEE802.3/802.3u/802.3x/802.3az straight mode
Meet the requirements of reliable work in harsh electrical environment
Support Ethernet port auto-negotiation
Industrial &Modular design make the equipment reliable and flexible
Support overload protection
The switch supports PoE, applies 40-57VDC power, Support 1*af/at/bt and 3*af/at PoE.
Support Reverse-link protection
Support optical port hot plug
Level of protection:IP40
ISO9000 qualified
Product Passes testing of the Ministry of Public Security
Product obtains network qualification certificate.

Ordering Information of F6-5800-6TP Unmanaged 6-Port 100M PoE Ethernet Industrial Switch

Model	Description	Management
F6-5800-6TP	410/100M auto adaptive PoE Ethernet RJ45 210/100M auto adaptive Ethernet RJ45	None
