Name: DIN-RAIL Unmanaged 1-Port 1000M Fx + 4-Port 1000M Tx Industrial Switch
Brand: Beijing Fibridge Co., Ltd.

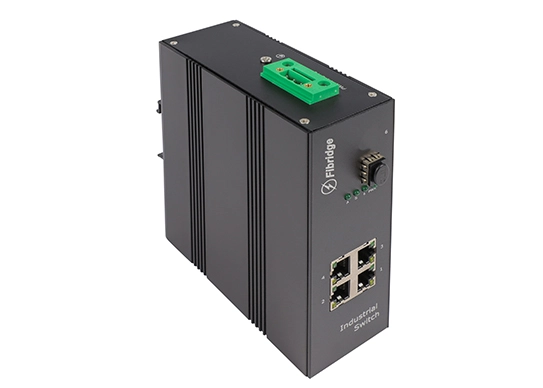

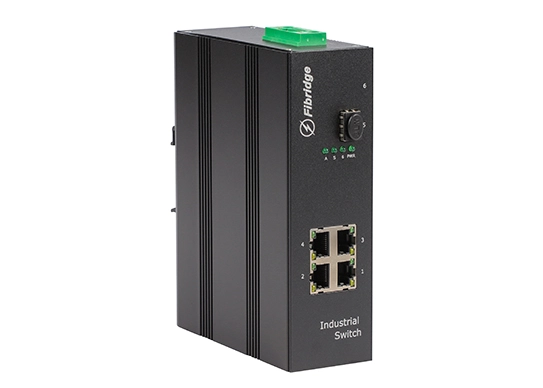

DIN-RAIL Unmanaged 1-Port 1000M Fx + 4-Port 1000M Tx Industrial Switch

Fibridge F6-4GT1GX series network DIN-RAIL industrial switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has 4 10 / 100/1000 mbps Ethernet interfaces and a 1000 mbps optical port. Built-in power module, the product provides 220V AC input or 12V DC input for options. The device operates at a temperature of -30℃～+70℃ Range and a humidity of %10~%90 (No condensation). The F6 series is compact desktop design, small size, light weight, easy to be placed in the desktop or cabinet.

DIN-RAIL Unmanaged 1-Port 1000M Fx + 4-Port 1000M Tx Industrial Switch Specification

Network Characteristics
Ethernet Protocol	IEEE802.3/802.3u/802.3x/802.3Z/802.3AB store and forward
Flow Control	IEEE802.3x flow control,back pressure flow control
Network Interface	OPT: 1000MBase-FX Single/multimode SC/FC/SFP/1*9

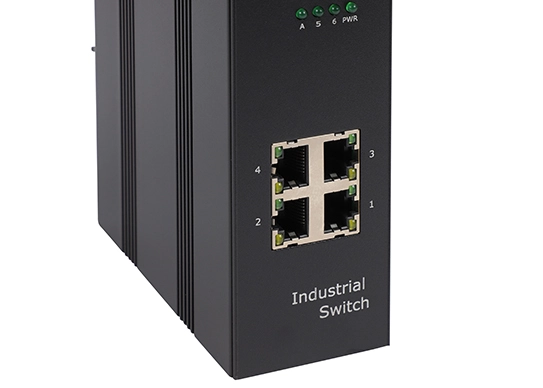

	ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	No
MAC Addresses	4K
Jumbo Frame	Max size 9216
Cache	NO
Exchange capacity	10Gbps
Packet Forwarding Rate	7.44Mpps
Management	No
Optical Characteristics

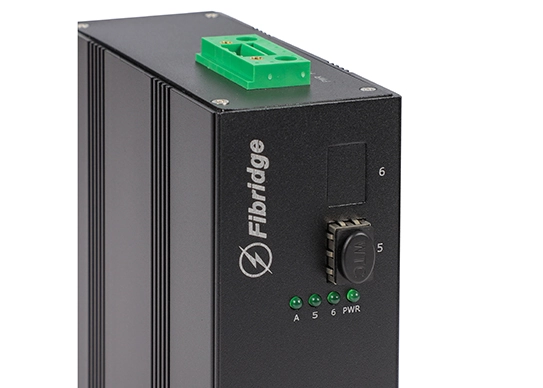

Optical Interface	SC/FC/SFP/1*9(Optional)
Fiber Core Count	Single / Dual core transmission
Wavelength	1310nm/1550nm(850nm)
Fiber Mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature: -40ºC~80ºC
	Storage temperature:-40ºC~85ºC
	Working humidity:10%~90% RH No condensation
	Storage humidity:5%~90% RH No condensation

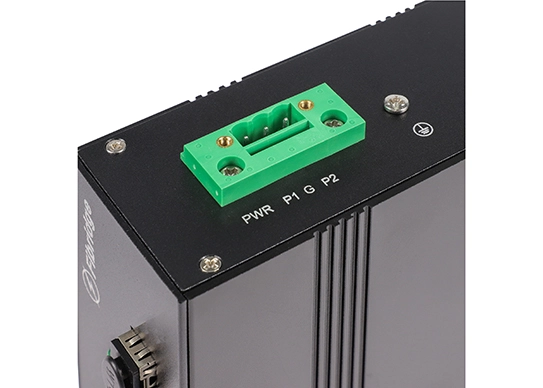

Power	AC 100-240V/50-60Hz Built-in switching power supply,
	DC12V 1A External power supply
MTBF	≥100000 hours
Mechanical Characteristics
Structural Dimension	163× 122× 52mm
Product Weight	0.8kg

DIN-RAIL Unmanaged 1-Port 1000M Fx + 4-Port 1000M Tx Industrial Switch Features

Support IEEE802.3/802.3u/802.3x/802.3az forward mode.
To meet the requirements of reliable work in harsh electrical environment.
Support for Port auto-negotiation.
Support flow control.
Industrial & Modular design make the equipment reliable and flexible.
Support overload protection.
Anti-link protection is supported.
Support light hot plug.
Level of protection: IP40.
ISO9000 quality system certified.
Pass the ministry of public security testing.
Obtain network qualification certificate.
