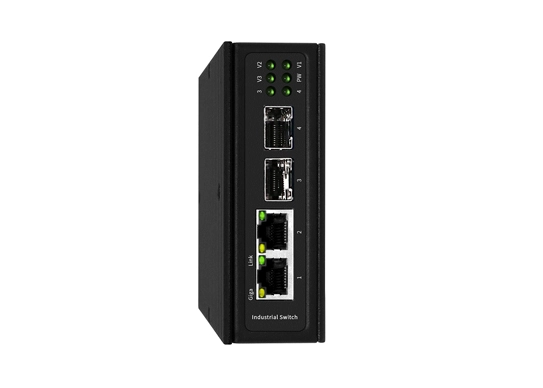

Name: F6-5800-2GT2S Unmanaged 2-Port GE SFP and 2-Port GE Base-Tx Industrial Switch
Brand: Beijing Fibridge Co., Ltd.

F6-5800-2GT2S Unmanaged 2-Port GE SFP and 2-Port GE Base-Tx Industrial Switch

Fibridge F6-5800-2GT2S series network industrial switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has 2*10/100/1000 Base-Tx ports and 2*1000Mbps optical port.

The device is built-in power module, you can choose 220V AC input or DC12-57V input products.

The device operates at a temperature of -40ºC~+85ºC Range and a humidity of %10~%90(No condensation).The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet.

Specification of F6-5800-2GT2S Unmanaged 2-Port GE SFP and 2-Port GE Base-Tx Industrial Switch

Network Characteristics
Ethernet Protocol	Support IEEE802.3/802.3u/802.3x/802.3az storage and forward mode
Flow Control	IEEE802.3x flow control, back pressure flow control
Network Interface	OPT: 1000MBase-FX Single/multimode SC/FC/SFP/1*9
Network Interface	ETH: 10/100/1000MBase-T(X) Adaptive Ethernet RJ45 port
VLAN	No
MAC Addresses	8K
Jumbo Frame	No
Cache	No
Packet Buffer	12Gbps
Packet Forwarding Rate	8.928Mpps
Management	No
Optical Characteristics
Optical Interface	SC/FC/SFP(Optional)
Fiber Core Count	Single / Dual core transmission
Wavelength	850nm
Fiber Mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature: -40ºC~85ºC
	Storage temperature:-40ºC~85ºC
	Working humidity:10%~90% RH No condensation
	Storage humidity:5%~90% RH No condensation
Power	AC 100-240V/50-60Hz Built-in switching power supply,
Power	DC12-57V 1A External power supply
MTBF	≥100000 hours

Features of F6-5800-2GT2S Unmanaged 2-Port GE SFP and 2-Port GE Base-Tx Industrial Switch

Support IEEE802.3/802.3u/802.3x/802.3az storage and forward mode
Meet the requirements of reliable work in harsh electrical environment
Support Ethernet port auto-negotiation
Industrial &Modular design make the equipment reliable and flexible
Support overload protection
PoE is optional
Support reverse-link protection
Support optical port hot plug
Level of protection:IP40
ISO9000 qualified
Product Passes testing of the Ministry of Public Security
Product obtains network qualification certificate.

Ordering Information of F6-5800-2GT2S Unmanaged 2-Port GE SFP and 2-Port GE Base-Tx Industrial Switch

Model	Description	Management
F6-5800-2GT2S	210/100/1000MBase-T(X) adaptive Ethernet RJ45 ports 21000MBase-FX SFP optical port	None
