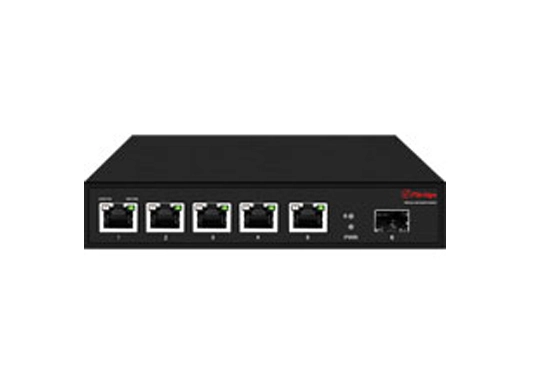

Unmanaged 1-Port uplink 10G SFP + 5-Port 2.5G PoE Switch F6C-5ME1X

Beijing Fibridge F6C-5ME1X unmanaged 1-Port 10G SFP+ and 5-Port 2.5G RJ45 Switch provides 5*10M/100M/1000M/2.5G RJ45 Ports and 1*1000/2500/10000M SFP+ Port. The switch supports port auto adaptation for instant plug and use. It can be instantly used once network cable is connected, no need to be configured, It provides smart and convenient transmission for users. Each port of the switch enhances massive flow’s forwarding capability, supports comprehensive compatibility, to meet more wide application.

Unmanaged 1-Port uplink 10G SFP + 5-Port 2.5G PoE Switch F6C-5ME1X Features

  • Backplane bandwidth: 45Gbps

  • Packet Forward Rate: 33.48Mpps

  • MAC address table: 4K

  • High speed buffer: 8.1M

  • 10G OPT uplink

  • 2.5G downlink

  • Instant plug and use, no need to configure

  • Auto-adapt to fix port, with highly stable link

  • Support port auto adapt


Unmanaged 1-Port uplink 10G SFP + 5-Port 2.5G PoE Switch F6C-5ME1X Specification

Model

F6C-5ME1X

Product name

1-Port 10G SFP+   and 5-Port 2.5G RJ45 Switch

Ports

5*10M/100M/1000M/2.5G   RJ45 Ports

1*1000/2500/10000M   SFP+ Port

Protocol

IEEE 802.3/U, IEEE   802.3ab, IEEE 802.3bz, IEEE 802.3x

Port speed

1000/2500/10000M

Backplane bandwidth

45Gbps

Package forward   rate

33.48Mpps

Package buffer

8.1M

MAC address   tablet

4K

Power

Adapter; max   650W(AC100-240V 50/60HZ max0.9A)

Working temperature   and humidity

0~+40°C;10%~90% RH no condensation

Storage temperature   and humidity

-40~+75°C;5%~90% RH no condensation

Dimension

160*112*30   265*220*68

Net/gross weight

0.52 0.83

Installation

Desktop(wall and   device hook parts optional)

Thunder proof   level

Port thunder   proof: 6KV 8/20u

Warranty

1 year


Ordering Information of Unmanaged 1-Port uplink 10G SFP + 5-Port 2.5G PoE Switch F6C-5ME1X

ModelPortManagement
F6C-5ME1X5*10M/100M/1000M/2.5G RJ45 Ports
1*1000/2500/10000M SFP+ Port
None
