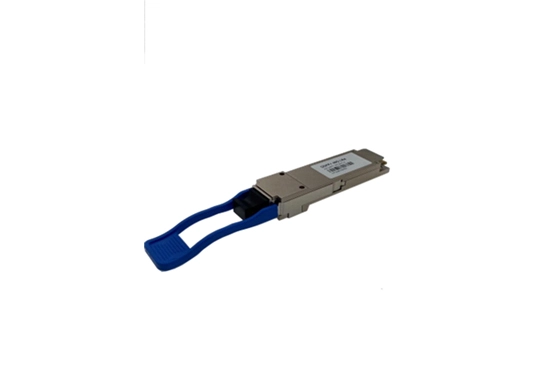

FSANLC23-K01/02/10/40C QSFP+ 40Gb/s LX4 1/2/10/10km CWDM Optical Transceiver

Beijing Fibridge FSANLC23-K01/02/10/40C QSFP+ 40Gb/s LX4 1/2/10/10km CWDM Optical Transceiver is compliant with QSFP+ MSA, IEEE802.3bm, SFF-8436, and RoHS. Its application includes 40GBASE-ER4 40G Ethernet.


Features of FSANLC23-K01/02/10/40C QSFP+ 40Gb/s LX4 1/2/10/10km CWDM Optical Transceiver

  • Hot-pluggable QSFP+ form factor

  • Supports 41.3 Gb/s aggregate bit rate

  • Power dissipation < 3.5W

  • 18.5 dB link insertion loss budget

  • RoHS-6 compliant

  • Single 3.3V power supply

  • Maximum link length of 1/2/10/40km on Single Mode Fiber (SMF)

  • Uncooled 4x10Gb/s CWDM transmitter

  • XLPPI electrical interface

  • Duplex LC receptacles

  • Built-in digital diagnostic functions, including Tx/Rx power

  • Commercial: 0°C to +70°C


Ordering Information of FSANLC23-K01/02/10/40C QSFP+ 40Gb/s LX4 1/2/10/10km CWDM Optical Transceiver

Package

Product part NO.

Distance

Temperature Range

QSFP+ to 4LC

FSANAA38-M01C

1-metercable

Commercial: 0~70℃

QSFP+ to 4LC

FSANAA38-M03C

3-metercable

Commercial: 0~70℃

QSFP+ to 4LC

FSANAA38-M05C

5-metercable

Commercial: 0~70℃

QSFP+ to 4LC

FSANAA38-M06C

6-metercable

Commercial: 0~70℃

QSFP+ to 4LC

FSANAA38-M10C

10-metercable

Commercial: 0~70℃

QSFP+ to 4LC

FSANAA38-M15C

15-metercable

Commercial: 0~70℃

QSFP+ to 4LC

FSANAA38-M20C

20-metercable

Commercial: 0~70℃

QSFP+ to 4LC

FSANAA38-M25C

25-metercable

Commercial: 0~70℃

QSFP+ to 4LC

FSANAA38-M30C

30-metercable

Commercial: 0~70℃

QSFP+ to 4LC

FSANAA38-M50C

50-metercable

Commercial: 0~70℃

QSFP+ to 4LC

FSANAA38-S10C

100-metercable

Commercial: 0~70℃

*For availability of additional cable lengths, please contact Fibridge.

Part NO.

Bit Rate (Gbps)

Laser (nm)

Distance(km)

Media

DDMI

Connector

Temp(℃)

FSANLC23-K02C

10.3125

1271nm

1291nm

1311nm

1331nm

2

single-mode  fiber

YES

LC

0~70

Part NO.

Bit Rate

(Gbps)

Laser (nm)

Distance(

km)

Media

DDMI

Connector

Temp(℃)



FSANLC23-K10C



10.3125

1271nm 1291nm 1311nm

1331nm



10


single-mode fiber



YES



LC



0~70

Part NO.

Bit Rate (Gbps)

Laser (nm)

Distance(km)

Media

DDMI

Connector

Temp(℃)

FSANLC23-K40C

41.3

1271nm

1291nm

1311nm

1331nm

40

single-mode  fiber

YES

LC

0~70
