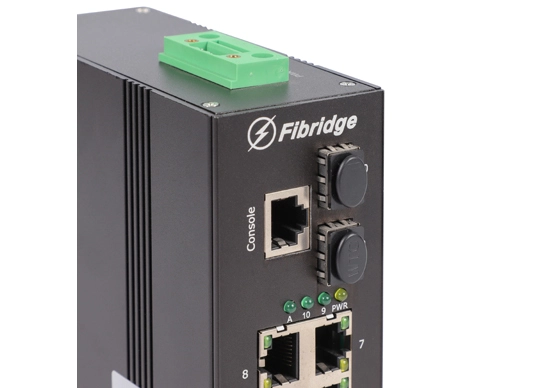

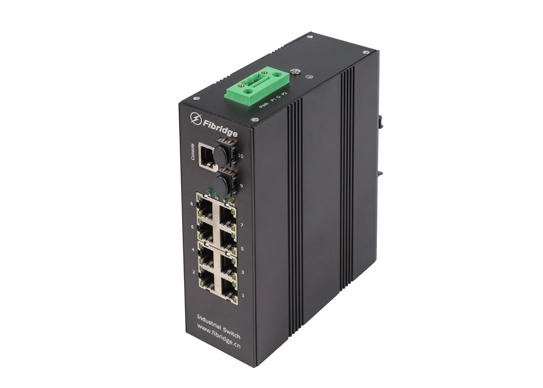

F6-M8GTPbt2GS L2 2 1G OPT and 8 Giga Ethernet 802.3bt PoE++ Industrial Switch

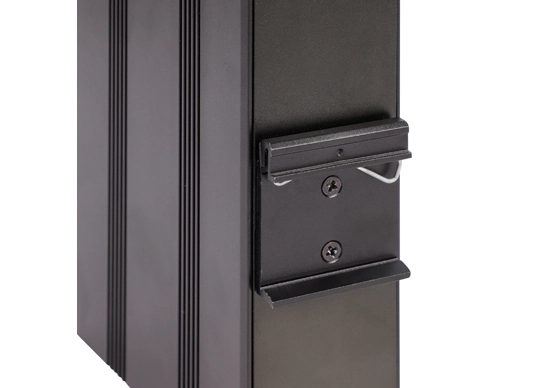

F6-M8GTPbt2GS L2 Managed Industrial PoE++ switch is developed by Beijing Fibridge, with advanced hardware processing ability and service characteristics. It provides 2 1G SFP optical ports and 8 10/100/1000M Base-T auto adaptive Ethernet PoE ports. The switch supports IPv4/IPv6 and line speed forward, helping customers to face the upcoming IPv6 era with high-capacity switch ability. The switch supports wide working temperatures range -40 to 80℃, to meet requirement of working in harsh environments. DIN-RAIL installation and wide range operation makes the switch a high-performance instant-use Industrial switch, providing reliable and easy solution for Ethernet devices networking.



Features of F6-M8GTPbt2GS L2 2 1G OPT and 8 Giga Ethernet 802.3bt PoE++ Industrial Switch

  • Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.3at/802.3af/802.1p store-and-forward

  • Meet requirements of reliable work in harsh electrical environment

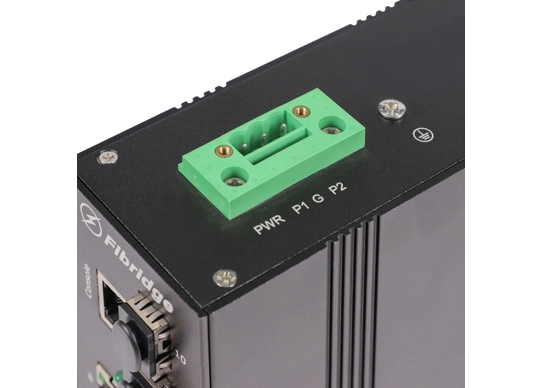

  • Support dual power supplies

  • Support port management, speed rate limit, storm restrict, bi-directional port mirror, etc.

  • Support flow control

  • Support IPv4/IPv6

  • Support STP/RSTP/MSTP/EAPS/ERPS

  • Support IGMPv1/2/3 and MLDv1/2 Snooping

  • Support GMRP protocol registration

  • Support ACL

  • Support SSH V1/V2/HTTPS

  • Support VLLP, VRRP

  • Support MVR, GMRP, PIM-SM

  • Support layer3 port

  • Support static routing, dynamic routing RIP v1/v2, OSPFv2/v3, BGP4

  • Support ROMN

  • Support safe visit control, support RADIUS/TRCACS+;

  • Support system operation log

  • Support PoE++

  • Support one button recovery

  • Support overload protection

  • Support Reverse-link protection

  • Support optical port hot plug

  • Protection level: IP40

  • Industrial and modular design makes the product more reliable and flexible

  • ISO9000 certificate

  • Pass test by the Ministry of Public Security

  • Obtain network qualification certificate


PoE Features of F6-M8GTPbt2GS L2 2 1G OPT and 8 Giga Ethernet 802.3bt PoE++ Industrial Switch

  • Support PoE, PoE+, PoE++

  • Compliant with IEEE 802.3af/at, 802.3bt standard

  • PoE power supply capacity 15.4W, PoE voltage 44-57V

  • PoE+ power supply capacity 30W, PoE voltage 50-57V

  • PoE++ power supply capacity 60W, up to 90W.


Specification of F6-M8GTPbt2GS L2 2 1G OPT and 8 Giga Ethernet 802.3bt PoE++ Industrial Switch

Network Characteristics

Ethernet Protocol

Support IEEE802.3/802.3u/802.3x/802.3Z/802.3AB   store-and-forward

Flow Control

IEEE802.3x   flow control, back pressure flow control

Network Interface

OPT: 1GBase-FX   SM/MM SC/FC/SFP+ optional

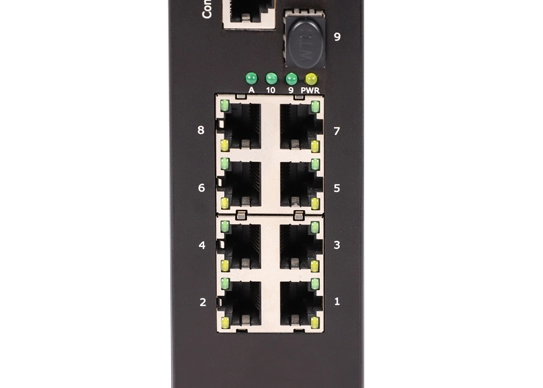

ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port

VLAN

Support   IEEE 802.1q standard VLAN

MAC Addresses

12K

Jumbo Frame

Max   size 9K

Cache

4MB

Packet Buffer

128Gbps

Packet Forwarding   Rate

95.232Mpps

Management

Web, SNMP   V1/V2/V3,Console,Telnet

Optical   Characteristics

Optical Interface

SC/FC/SFP+   (Optional)

Fiber Core Count

Single / Dual core   transmission

Wavelength

1310nm/1550nm(850nm)

Fiber Mode

Single Mode /   Multimode

Environmental Characteristics

Temperature &   Humidity

Working temperature: -40ºC~85ºC
  Storage temperature:-40ºC~85ºC
  Working humidity:10%~90% RH No condensation
  Storage humidity:5%~90% RH No condensation

Power

220VAC   or DC

MTBF

≥100000 hours


Ordering Information of F6-M8GTPbt2GS L2 2 1G OPT and 8 Giga Ethernet 802.3bt PoE++ Industrial Switch

Model

Interface

Management

F6-M8GTPbt2GS

8* 10/100/1000MBase-T(X) PoE ports
2* 1G SFP optical ports

WEB, TELNET, Console
