F6-M16T4XT L3 10G Managed Industrial 4 10G OPT and 16 Giga Ethernet Switch

Port

4-Port 10G OPT and 16-Port   gigabit Ethernet

Port Mirror

Support multiple to 1 port   mirror, no limit to mirror source port quantity

Management port

1 Console

Loop protection

Support loop test/loop avert

Recovery button

1 button to recover to   factory configuration

Ring topology protocol

Support industrial grade   ring topology protocol ERPS

Switch capacity

1.2Tbps

Port flow control

Support half/full duplex back pressure flow control

Package forward rate

406Mpps

Port speed limit

Support full duplex based   on PAUSE frame

MAC Address

Support 32K MAC address

tablet, support auto update,

bi-directional learning.

IP routing

Support input/output bandwidth management based on port

Support static routing

Support dynamic routing RIP、RIPng、OSFP、OSPFv3

Support VRRP

Working temperature

-40 to 80°C

QOS

SP（Strict Priority）

WFQ (Weighted Fair Queuing)

WRR (Weighted Round Robin)

Random Early Detect (RED)

WeightedRandomEarlyDetection   (WRED)

Head Of Line

Best-Effort Service

First come first served

802.1p

Cos/Tos，QOS tag

Storage temperature

-40 to 85°C

CAT cable definition

Auto-MDIX

Working humidity

10-90% (no condensation)

Adapt mode

Ethernet: 10/100/1000M auto   adapt

Optical port: 1G/2.5G/10G   multiple speed rate mode

Storage humidity

5-95% (no condensation)

Multicast

Support IGMP Snooping

Support MLD Snooping（Multicast Listener Discovery Snooping）

Input voltage

DC12-52V, PoE DC48-57V

Support dual powers   redundancy

Support embedded overflow   4.0A protection

Support reverse link   protection

Security characteristics

Hardware supports IP ACL，MAC ACL，Vlan ACL，supports ACL based on layer 3 and   4.

Hardware supports   port-based IP+MAC bunding

Support IP Source Guard

Support ARP Detection

Support IEEE 802.1x port   qualification

Support Radius   qualification

Dimension

166 x 137 x68.5mm

Clock protocol

Support NTP

Support PTP（1588v2）

Weight

<1.2Kg

DHCP

DHCP Client；        DHCP Server；

DHCP Snooping；     DHCP Relay；

Consumption

<18W

MTBF

300,000 H

System maintenance

Support configuration file   upload/download

Support upgrade package   upload

Support WEB recovery to   factory setting

Support system log

Support PING test, tracert   test, and CAT cable test

Support WEB interface management   (support http and https protocol)

Support CLI interface   management

Support Telnet remote management

Support SSH 2.0

Support SNMP management

Support RMON

Support LLDP

Warranty

5 years

VLAN

Max support 4096 VLAN

Support 802.1Q standard VLAN

Support QinQ

Support Voice VLAN、MAC VLAN、IP VLAN

LxWxH (mm):

175.6 x 135 x45.5mm

Storm restriction

Broadcast, Multicast, Unicast   Storm

Spanning tree

Support STP Spanning tree

Support RSTP Spanning tree

Support MSTP multiple Spanning tree

Support protocol standard

IEEE 802.3ad link   convergence protocol

IEEE 802.3,10BASE-T

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3z

IEEE 802.3ae

IEEE 802.3x

IEEE 802.3az

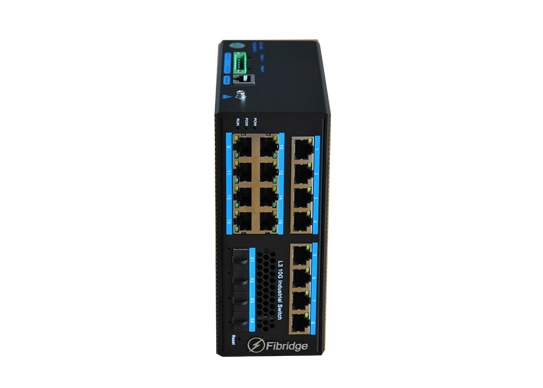

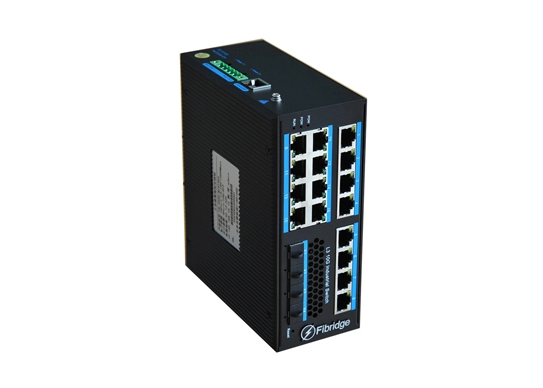

F6-M16T4XT

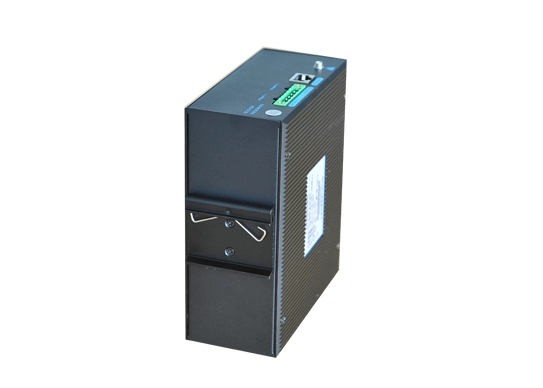

Enhance layer3 management 4 SFP+   optical(support Giga/10G) ports and 16 10/100/1000M Base-T ports. DIN-RAIL DC12V-52V,   wide working temperature range(-40℃ to 80℃).

Default quote doesn’t include AC power   adapter and SFP modules.
