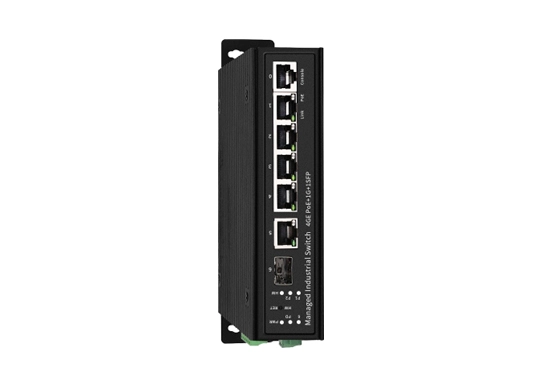

Name: F6-5800-M5GT1GS Managed 1 1G Opt and 5-Port Giga Base-T Industrial Switch
Brand: Beijing Fibridge Co., Ltd.

F6-5800-M5GT1GS Managed 1 1G Opt and 5-Port Giga Base-T Industrial Switch

FIBRIDGE F6-5800-M5GT1GS series management Industrial Switches are high-performance Ethernet access products developed by Beijing Fibridge. It provides 5*10/100/1000Mbps Ethernet electrical ports and 1*1000Mbps SFP port. With corresponding network management software, it can realize the management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display. F6-5800-M5GT1GS series is embedded with management module, provides Console and Ethernet two kinds of management ports, supports Console, WEB, SNMP and etc. The product is embedded with power module, providing 220VAC or 12-57VDC power supply for options. F6-5800-M5GT1GS's working temperature is -40ºC~+85ºC, humidity is %10~%90(No condensation). F5 series applies compact desktop design, can be easily installed on desktop or cabinet for its small size and light weight.

Specification of F6-5800-M5GT1GS Managed 1 1G Opt and 5-Port Giga Base-T Industrial Switch

Network Characteristics
Ethernet Protocol	Support IEEE802.3/802.3u/802.3x/802.3Z/802.3AB store-and-forward
Flow Control	IEEE802.3x flow control, back pressure flow control
Network Interface	OPT: 1000MBase-FX SM/MM SC/FC/SFP optional ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	Support IEEE 802.1q standard VLAN
MAC Addresses	12K
Jumbo Frame	Max size 9K
Cache	4MB
Packet Buffer	20Gbps
Packet Forwarding Rate	14.88Mpps
Management	Web,SNMP V1/V2/V3,Console,Telnet
Optical Characteristics
Optical Interface	SC/FC/SFP(Optional)
Fiber Core Count	Single / Dual core transmission
Wavelength	1310nm/1550nm(850nm)
Fiber Mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature:-40ºC~85ºC Storage temperature:-40ºC~85ºC Working humidity:10%~90% RH No condensation Storage humidity:5%~90% RH No condensation
Power	AC 100-240V/50-60Hz 260W embedded switch power DC12-57V 1A external DC power
MTBF	≥100000 hours
Mechanical Characteristics
Structural Dimension	15511540mm/23516578mm
Product Weight	0.88kg/1.04kg
Power consumption	≤8w

Features of F6-5800-M5GT1GS Managed 1 1G Opt and 5-Port Giga Base-T Industrial Switch

Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.3at/802.3af/802.1p store-and-forward
Meet requirements of reliable work in harsh electrical environment
Support port management, speed rate limit, storm restrict, bi-directional port mirror, etc.
Support flow control
Support IPv4/IPv6
Support STP/RSTP/MSTP/EAPS/ERPS
Support IGMPv1/2/3 and MLDv1/2 Snooping
Support GMRP protocol registration
Support ACL
Support SSH V1/V2/HTTPS
Support ROMN
Support safe visit control, support RADIUS/TRCACS+;
Support system operation log
PoE is optional
Support overload protection
Support Reverse-link protection
Support optical port hot plug
Protection level: IP40
Industrial and modular design makes the product more reliable and flexible
ISO9000 certificate
Pass test by the Ministry of Public Security
Obtain network qualification certificate

Ordering Information of F6-5800-M5GT1GS Managed 1 1G Opt and 5-Port Giga Base-T Industrial Switch

Model	Interface	Management
F6-5800-M5GT1GS	510/100/1000MBase-T(X) RJ45 port 11000MBase-FX SFP optical port	WEB, TELNET, Console
