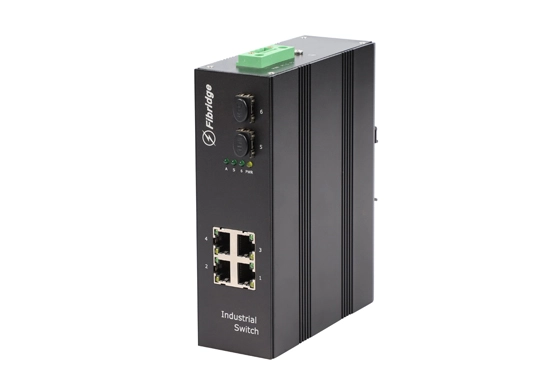

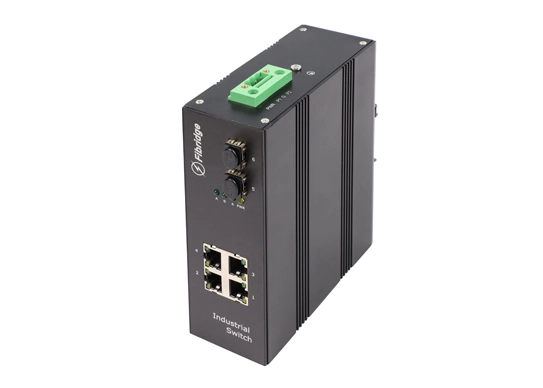

F6-4GT2GX DIN-RAIL Unmanaged 2-Port 1000M Fx + 4-Port 1000M Tx Industrial Switch

Fibridge F6-4GT2GX series network industrial switch is a high-performance ether-net access equipment developed by Beijing Fibridge. It has 4 10/100/1000 Mbps Ethernet interfaces and 1* 1000 Mbps optical ports. The device is built-in power module, you can choose 220V AC input or 12V DC input. The device operates at a temperature of -40ºC~+85ºC Range and a humidity of 10%~90%(No condensation).The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet.

Specification of F6-4GT2GX DIN-RAIL Unmanaged 2-Port 1000M Fx + 4-Port 1000M Tx Industrial Switch

Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3az straight mode
Flow ControlNot support
Network InterfaceOPT: 100MBase-FX Single/multimode SC/FC/SFP/1*9
ETH: 10/100MBase-T(X)Adaptive Ethernet RJ45 port
VLANNo
MAC Addresses1K
Jumbo FrameNo
CacheNo
Packet Buffer1.6Gbps
Packet Forwarding Rate1.19Mpps
ManagementNo
Optical Characteristics
Optical InterfaceSC/FC/SFP/1*9(Optional)
Fiber Core CountSingle / Dual core transmission
Wavelength850nm
Fiber ModeSingle Mode / Multimode
Environmental Characteristics
Temperature & HumidityWorking temperature: -40ºC~85ºC
Storage temperature:-40ºC~85ºC
Working humidity:10%~90% RH No condensation
Storage humidity:5%~90% RH No condensation
PowerAC 100-240V/50-60Hz Built-in switching power supply,
DC12V 1A External power supply(
not PoE)
MTBF≥100000 hours


Features of F6-4GT2GX DIN-RAIL Unmanaged 2-Port 1000M Fx + 4-Port 1000M Tx Industrial Switch

  • Support IEEE802.3/802.3u/802.3x/802.3az straight mode;

  • Meet requirements of reliable work in harsh electrical environment;

  • Support Port auto-negotiation;

  • Industrial &Modular design make the equipment reliable and flexible;

  • Support overload protection;

  • Support Reverse-link protection;

  • Support optical port hot plug;
    Level of protection:IP40;

  • ISO9000 qualified;

  • Product Passes testing of the Ministry of Public Security;

  • Product obtains network qualification certificate.
