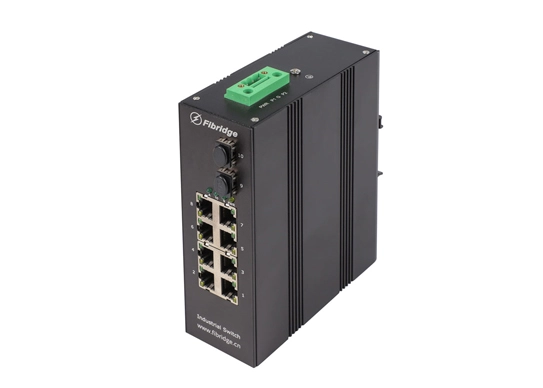

F6-8GTP2GX Industrial DIN-RAIL 2 Gigabit OPT and 8 Ge Ethernet Poe Switch

Fibridge F6-8GTP2GX series Industrial Switches are high-performance Ethernet access products developed by Beijing Fibridge. It provides 8*10/100/1000Mbps PoE Ethernet electrical ports and 2*1000Mbps optical ports.


The product is embedded with a power module, providing 12-57VDC power supply. The switch supports PoE+ function, applying 40-57VDC power supply, outputs 1*af/at/bt and 7*af/at/bt ports. Its working temperature is -40ºC~+85ºC, humidity is 10~90%(No condensation). F6 series applies compact desktop design, can be easily installed on desktop or cabinet for its small size and light weight.


Contact

Features of F6-8GTP2GX Industrial DIN-RAIL 2 Gigabit OPT and 8 Ge Ethernet Poe Switch

  • Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.3at/802.3af/802.1p store-and-forward

  • Meet requirements of reliable work in harsh electrical environment

  • Support flow control

  • Support PoE, PoE+, PoE++

  • Support overload protection

  • Support Reverse-link Protection

  • Support optical port hot plug

  • Protection level: IP40

  • Lightning and statics protection

  • Solod and seal metal housing

  • Industrial and modular design makes the product more reliable and flexible

  • ISO9000 certificate

  • Pass test by the Ministry of Public Security

  • Obtain network qualification certificate


PoE Features of F6-8GTP2GX Industrial DIN-RAIL 2 Gigabit OPT and 8 Ge Ethernet Poe Switch

  • Support IEEE802.3af and IEEE802.3at

  • POE++ IEEE802.3bt optional

  • IEEE802.3af standard 15.4w

  • IEEE802.3at standard 30w

  • Power budget 240W

  • Optional POE++ IEEE802.3bt max 90w

  • External POE Power Supply DC48/52v, external POE power adaptor up to 600w as accessory

  • 4kv POE port anti-lightning


Specification of F6-8GTP2GX Industrial DIN-RAIL 2 Gigabit OPT and 8 Ge Ethernet Poe Switch

Network     Characteristics
Ethernet   ProtocolSupport IEEE802.3/802.3u/802.3x/802.3Z/802.3AB   store-and-forward
Flow     ControlIEEE802.3x flow control,   pressure flow control
Network   InterfaceOPT: 1000MBase-FX   Single/multimode SC/FC/SFP
ETH:   10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLANN/A
MAC   Addresses12K
Jumbo   FrameMax size 9K
Cache4MB
Switch capacity20Gbps
Packet   Forwarding Rate14.88Mpps
ManagementN/A
Optical   Characteristics
Optical   InterfaceSC/FC/SFP(Optional)
Fiber   Core CountSingle / Dual core transmission
Wavelength1310nm/1550nm(850nm)
Fiber   ModeSingle Mode / Multimode
Environmental   Characteristics
Temperature   & HumidityWorking   temperature: -40ºC~85ºC
Storage   temperature:-40ºC~85ºC
Working   humidity:10%~90% RH No condensation
Storage   humidity:5%~90% RH No condensation
PowerAC 100-240V/50-60Hz 260W   embedded switch power supply
DC48~56V   260W external DC power(PoE)
DC12V   1A external DC power(Not PoE)
MTBF≥100000 hours
Mechanical   Characteristics
Structural   Dimension163× 122× 52mm
Product   Weight0.8kg


Ordering Information of F6-8GTP2GX Industrial DIN-RAIL 2 Gigabit OPT and 8 Ge Ethernet Poe Switch


Model

Ports

Management

F6-8GTP2GX

8* 10/100/1000MBase-T(X) PoE ports
2* 1000M SFP optical ports

N/A
