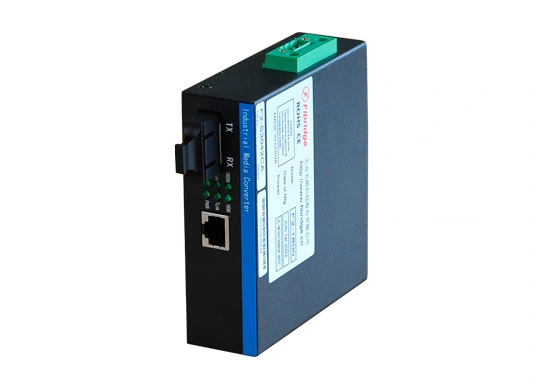

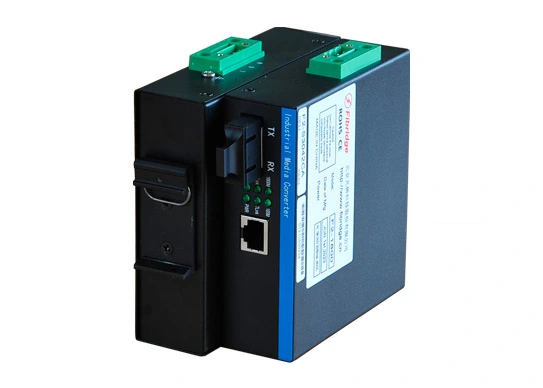

F6-1TX1FX DIN-RAIL Unmanaged 1-Port 100M Fx + 1-Port 100M Tx Industrial Switch

Fibridge F6-1TX1FX series network management industrial switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has a 10 / 100 mbps Ethernet interface and a 100 mbps optical port. The device, built-in power module, provides 220V AC input or 12V DC input for options. The device operates at a temperature of -30℃～+70℃ Range and a humidity of %10~%90（No condensation. Fibridge F6 series is compact desktop design, small size, light weight, easy to be placed on desktop or in cabinet.

Contact

Specification of DIN-RAIL Unmanaged 1-Port 100M Fx + 1-Port 100M Tx Industrial Switch


Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3az
Flow ControlIEEE802.3x flow control
Network InterfaceOPT: 100MBase-FX Single/multimode SC/FC/SFP/1*9
ETH: 10/100MBase-T(X)Adaptive Ethernet RJ45 port
VLANNo
MAC Addresses1K
Jumbo FrameNo
Cache448Kbit
Packet Buffer0.4Gbps
Packet Forwarding Rate0.2896Mpps
ManagementNo
Optical Characteristics
Optical InterfaceSC/FC/SFP/1*9(Optional)
Fiber Core CountSingle / Dual core transmission
Wavelength1310nm/1550nm（850nm）
Fiber ModeSingle Mode / Multimode
Environmental Characteristics
Temperature & HumidityWorking temperature: -30℃～85℃
Storage temperature: -40℃～85℃
Working humidity: 10%～90% RH No condensation
Storage humidity: 5%～90% RH No condensation
PowerAC 100-240V/50-60Hz Built-in switching power supply,
DC12V 1A External power supply
MTBF≥100000 hours



Features of DIN-RAIL Unmanaged 1-Port 100M Fx + 1-Port 100M Tx Industrial Switch

  • Support IEEE802.3/802.3u/802.3x/802.3az forward mode.

  • Meet the requirements of reliable work in harsh electrical environment.

  • Support Port auto-negotiation.

  • Support flow control.

  • Industrial & Modular design make the equipment reliable and flexible.

  • Support overload protection.

  • Reverse-link protection is supported.

  • Support light hot plug.

  • Level of protection: IP40.

  • ISO9000 quality system certified.

  • Pass the ministry of public security testing.

  • Obtain network qualification certificate.
