Name: DIN-RAIL L2 Managed 2-Port 1000M Fx + 8-Port 1000M Fx Industrial Switch
Brand: Beijing Fibridge Co., Ltd.

DIN-RAIL L2 Managed 2-Port 1000M Fx + 8-Port 1000M Fx Industrial Switch

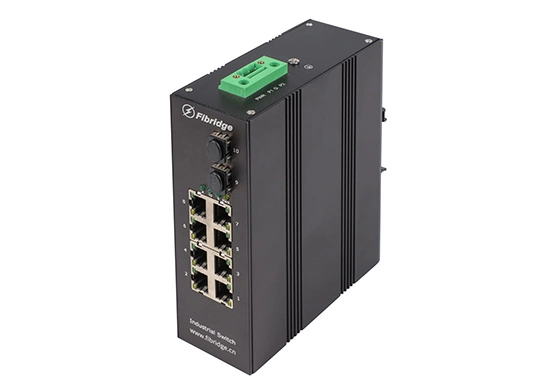

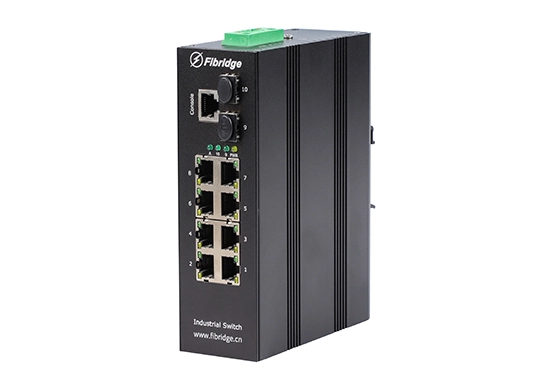

Fibridge F6-M8GT2GX series managed DIN-RAIL industrial switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has 8 10/100/1000 Mbps Ethernet interfaces and 2 1000 Mbps optical ports. With corresponding network management software, it can realize management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display. F6-M8GT2GX series can be built-in network management module, providing Console and Ethernet two kinds of management interface, can support Console, WEB, Telnet and SNMP and other network management methods. Built-in power module, the product provides 220V AC input or 12V DC input for options. Poe+ function is optional. The device operates at a temperature of -40℃～+85℃ Range and a humidity of %10~%90 (No condensation). F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet.

DIN-RAIL L2 Managed 2-Port 1000M Fx + 8-Port 1000M Fx Industrial Switch Specification

Network Characteristics
Ethernet Protocol	Support IEEE802.3/802.3u/802.3x/802.3az store and forward mode;
Flow Control	IEEE802.3x flow control, back pressure flow control
Network Interface	OPT: 1000MBase-FX Single/multimode SC/FC/SFP

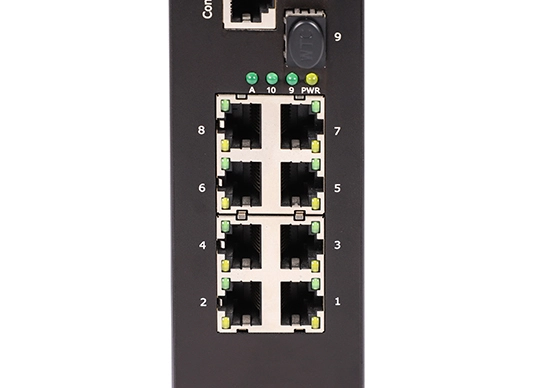

	ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	Support IEEE 802.1q VLAN
MAC Addresses	12K
Jumbo Frame	Max size 9K
Cache	4Mb
Packet Buffer	20Gbps
Packet Forwarding Rate	14.88Mpps

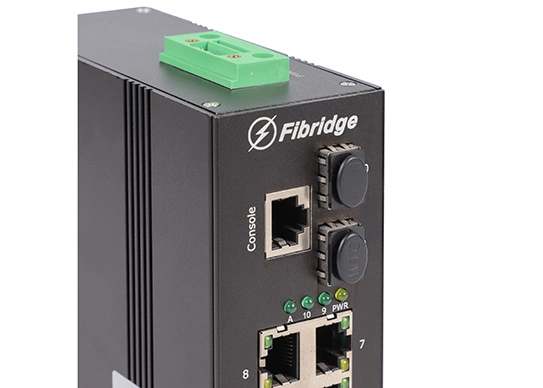

Management	Support WEB,Telnet,Console
Optical Characteristics
Optical Interface	SC/FC/SFP(Optional)
Fiber Core Count	Single / Dual core transmission
Wavelength	1310nm/1550nm(850nm)
Fiber Mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature: -40ºC~85ºC
	Storage temperature:-40ºC~85ºC
	Working humidity:10%~90% RH No condensation
	Storage humidity:5%~90% RH No condensation

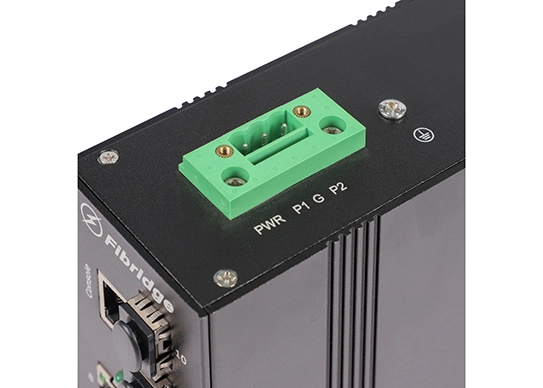

Power	AC 100-240V/50-60Hz Built-in switching power supply,
	DC48~56V 1.5A External power supply(PoE),
	DC12V 1A External power supply
MTBF	≥100000 hours
Mechanical Characteristics
Structural Dimension	163× 122× 52mm
Product Weight	0.8kg

DIN-RAIL L2 Managed 2-Port 1000M Fx + 8-Port 1000M Fx PoE Industrial Switch Features

Support IEEE802.3/802.3u/802.3x/802.3az through mode.
To meet the requirements of reliable work in harsh electrical environment.
Support for Port auto-negotiation.
Support SNMP, Telnet, Web and CLI Management Methods.
Support to query and configure the status of each port, including connection status, rate, duplex, closed.
Support flow control.
Support Port Mirroring.
Support for storm control.
Support Qos.
Support VLAN.
Support Link back out test.
Support for IP / Mac / Port binding.
Support Ring STP, RSTP.
Support Poe+ function.
With powerful historical warning information and log information query and management functions.
Support overload protection.
Anti-link protection is supported.
Support light hot plug.
Level of protection: IP40.
ISO9000 quality system certified.
Pass the Ministry of Public Security testing.
Obtain network qualification certificate.
