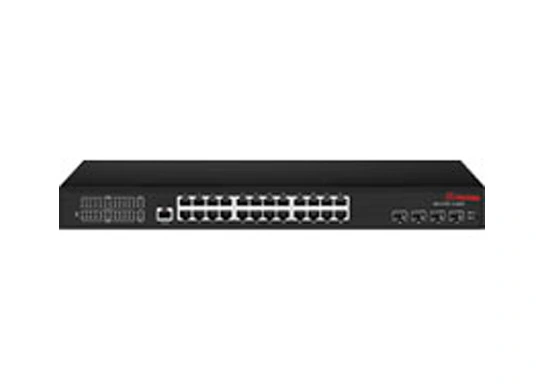

4-Port 1000M SFP + 24-Port 1000M Tx Managed Switch

Fibridge F6-M24GT4GX series network management switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has 24 10/100/1000 Mbps Ethernet interfaces and 4 1000 Mbps optical ports. With corresponding network management software, it can realize management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display. The series switches can be built-in network management module, providing Console and Ethernet two kinds of network management interface. The product supports Console, WEB, Telnet, SNMP and other network management methods. The device is built-in power module, providing  220V AC input or 12V DC input for options. F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet.

Contact

4-Port 1000M SFP + 24-Port 1000M Tx Managed Switch Specification


Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3az
Flow ControlIEEE802.3x flow control
Network InterfaceOPT: 1000MBase-FX Single/multimode SC/FC/SFP
ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLANSupport IEEE 802.1q VLAN, QinQ, Protocol VLAN
MAC Addresses16K
Huge FrameMax size 16K
Cache4Mb
Packet Buffer56Gbps
Packet Forwarding Rate40.544Mpps
ManagementSupport WEB, Telnet, Console, SNMP
Optical Characteristics
Optical InterfaceSC/FC/SFP(Optional)
Fiber Core CountSingle / Dual core transmission
Wavelength1310nm/1550nm（850nm）
Fiber ModeSingle Mode / Multimode
Environmental Characteristics
Temperature & HumidityWorking temperature：-10℃～55℃
Storage temperature：-40℃～85℃
Working humidity：10%～90% RH No condensation
Storage humidity：5%～90% RH No condensation
PowerAC 100-240V/50-60Hz Built-in switching power supply，
DC48~56V 1.5A External power supply(PoE),
DC12V 1A External power supply
MTBF≥100000 hours




4-Port 1000M SFP + 24-Port 1000M Tx Managed Switch Features

  • Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.3at/.

  • 802.3af/802.1p through mode.

  • Support SNMP, Telnet, Web and CLI Management Methods.

  • Support inquiry and configuration to status of each port, including connection status, rate, duplex, closed, Port Mirroring, storm control.

  • Support flow control.

  • Support IPv4/IPv6.

  • Support IGMPv1/2/3 and MLDv1/2 Snooping.

  • Support registration of GMRP protocol.

  • Support ACL.

  • Support SSH V1/V2/HTTPS.

  • Support ROMN.

  • Support security access control, support RADIUS/TRCACS.

  • Support STP/RSTP/MSTP/EAPS/ERPS.

  • Support Poe+ function.

  • With powerful historical warning information and log information query and management functions.

  • Support overload protection.

  • Support Anti-link protection.

  • Support optical hot plug.

  • Obtain ISO9000 quality system certificate.

  • Pass the ministry of public security testing.

  • Obtain network qualification certificate.
