f6c 5800 m8gt18s 543
f6c 5800 m8gt18s 543

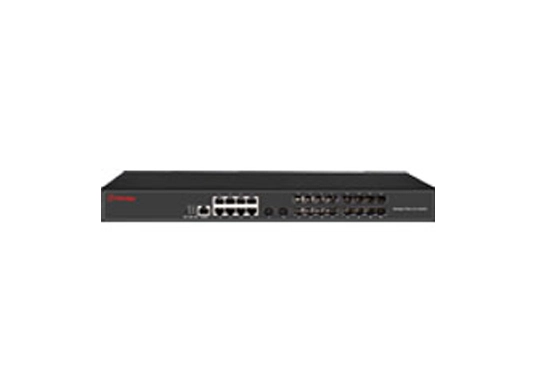

18-Port 1000M SFP + 8-Port 1000M Tx Managed Switch

Fibridge  F6C-5800-M8GT18S series network switch is a high-performance Managed Ethernet access equipment developed by Beijing Fibridge. It has 8* 10/100/1000 Mbps Ethernet interface and 18*Gigabit FX ports.

With corresponding network management software, it can realize the management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display.

F6C-5800-M8GT18S series can be embedded with management module, providing Console and Ethernet two types of management connectors, supporting Console, WEB, Telnet and SNMP management.

The product is embedded with power module, providing  220VAC or DC12V for options. The series provides PoE+ function for options, PoE status can be monitord and managed by remote management.The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet. The series' working temperature is 0ºC to +70ºC,10%~90(no condensation).

Contact

18-Port 1000M SFP + 8-Port 1000M Tx Managed Switch Specification

Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3Z/802.3AB storage-and-forward
Flow ControlIEEE802.3x flow control, back pressure flow control
Network InterfaceOPT: 1000MBase-FX Single/multimode SC/FC/SFP
ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLAN802.1Q standard VLAN
MAC Addresses12K
Jumbo FrameMax 9K
Cache4MB
Packet Buffer52Gbps
Packet Forwarding Rate38.688Mpps
ManagementWEB, Telnet, Console, SNMP
Optical Characteristics
Optical InterfaceSC/FC/SFP(Optional)
Fiber Core CountSingle / Dual core transmission
Wavelength1310nm/1550nm(850nm)
Fiber ModeSingle Mode / Multimode
Environmental Characteristics
Temperature & HumidityWorking temperature: 0ºC to +70ºC
Storage temperature: :-40ºC to 85ºC
Working humidity:10%~90% RH No condensation
Storage humidity: 5%~90% RH No condensation
PowerAC 100-240V/50-60Hz 260W Built-in switching power supply
DC12V 3A external DC power
MTBF≥100000 hours


Features of 18-Port 1000M SFP + 8-Port 1000M Tx Managed Switch

  • Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.3at/802.3af/802.1p storage-and-forward

  • Meet the requirements of reliable work in harsh electrical environment

  • Support enquiry and configuration to the status of each port, including connection status, rate, duplex, closed, Port.

  • Support link aggregation

  • Support flow control

  • Support VLAN

  • Support port isolation

  • Support port speed limit

  • Support STP/RSTP/MSTP

  • Support IGMPv1/2/3

  • Support DoS protection

  • Support static routing

  • Support system log

  • PoE is optional

  • Support overload protection.

  • Support reverse connection protection.

  • Support optical port hot plug.

  • IP 40 protection level.

  • Industrial and modular design ensures the product's reliability and flexibility.

  • ISO9000 qualified

  • Pass test by Ministry of Public Security

  • Obtain network qualification certificate.


Ordering Information of 18-Port 1000M SFP + 8-Port 1000M Tx Managed Switch

ModelPortManagement
F6C-5800-M8GT18S8*10/100/1000M Ethernet RJ45 ports
18*10G SFP+ optical ports		Web
Telnet
Console
