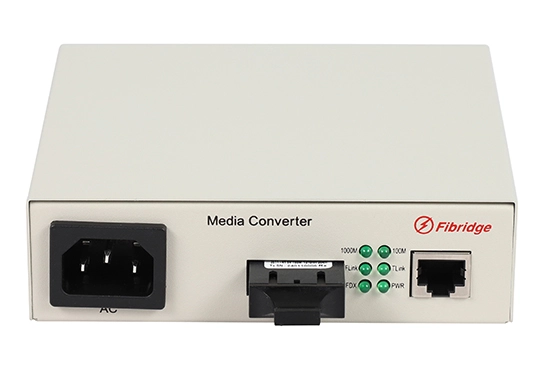

Fibridge F6-1GT1GX series network management switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has 1 10/100/1000 mbps Ethernet interfaces and a 1000 mbps optical port. The fibridge device is built-in power module, you can choose 220V AC input or 12V DC input products. The F6 series is compact desktop design, small size, light weight, easy to place on desktop or in cabinet.
Contact us for high-quality oem ethernet switch at unmatched price!
| Network Characteristics | |
| Ethernet Protocol | Support IEEE802.3/802.3u/802.3x/802.3az |
| Flow Control | IEEE802.3x flow control |
| Network Interface | OPT: 1000MBase-FX Single/multimode SC/FC/SFP/1*9 ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port |
| VLAN | No |
| MAC Addresses | 1K |
| Huge Frame | No |
| Cache | NO |
| Packet Buffer | 4Gbps |
| Packet Forwarding Rate | 2.896Mpps |
| Management | No |
| Optical Characteristics | |
| Optical Interface | SC/FC/SFP/1*9(Optional) |
| Fiber Core Count | Single / Dual core transmission |
| Wavelength | 1310nm/1550nm（850nm） |
| Fiber Mode | Single Mode / Multimode |
| Environmental Characteristics | |
| Temperature & Humidity | Working temperature: -10℃～50℃ Storage temperature: -40℃～75℃ Working humidity: 10%～90% RH No condensation Storage humidity: 5%～90% RH No condensation |
| Power | AC 100-240V/50-60Hz Built-in switching power supply, DC12V 1A External power supply |
| MTBF | ≥100000 hours |
Support IEEE802.3/802.3u/802.3x/802.3az forward mode.
Support for Port auto-negotiation.
Support flow control.
Industrial & Modular access network switch design make the equipment reliable and flexible.
Support overload protection.
Anti-link protection is supported.
Support light hot plug.
ISO9000 quality system certified.
Pass the ministry of public security testing.
Obtain network qualification certificate.
1. Connection between data centers. Gigabit fiber media converter is used for high-speed data exchange and storage in and between data centers.
2. Enterprise network upgrade. The enterprise network is upgraded to 1000M, to meet increasing demand of data transmission.
3.Service provider. Internet service providers apply gigabit fiber media converter to provide high-speed internet access services.
4.Campus and government network. Education and the government use gigabit media converters to construct high-speed and reliable internal telecommunication networks.
5.Industrial automation. In the industrial automation field, gigabit fiber media converter is used for high-speed data exchange between machine and control systems.

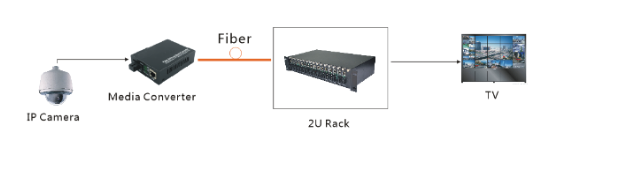

6. IP Video surveillance. Gigabit media converter is easily used in signal transmission of IP cameras.
1. Take the gigabit fiber media converter out from its packing carton, examine the device, contact factory if there is damage.
2. Connect the fiber patch cord or pigtail to two end’s gigabit fiber media converter’s optical port.
3. Connect UPT cable from your network device’s gigabit RJ45 port to gigabit media converter’s RJ45 port.

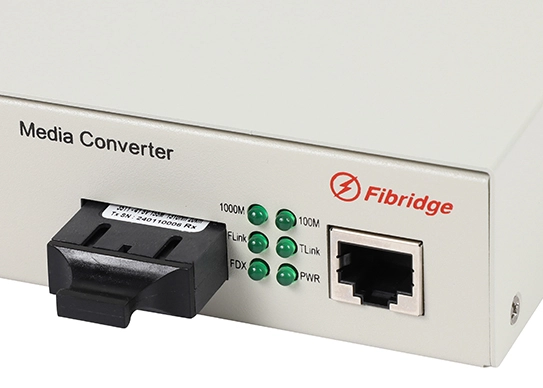

4. Plug power cable and turn on the device. The power LED will be on, and the other LEDs will flash in sequence of self-detection. After self-detection finish, gigabit media converter’s optical port and RJ45 port working status will be determined by their detection result.
