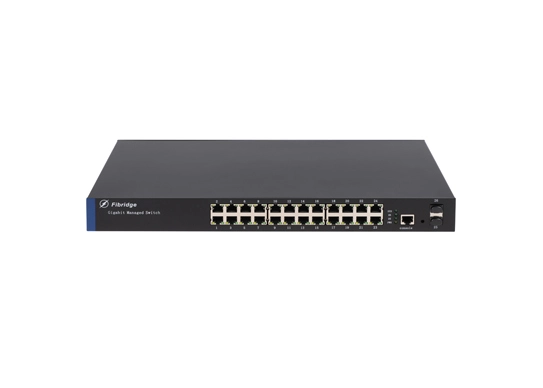

Name: F6C-5800-24GT2S 24-Port Gigabit Tx + 2-Port Gigabit Fx Unmanaged Switch
Brand: Beijing Fibridge Co., Ltd.

F6C-5800-24GT2S 24-Port Gigabit Tx + 2-Port Gigabit Fx Unmanaged Switch

Fibridge F6C-5800-24GT2S series network switch is a high-performance Ethernet access equipment developed by Beijing Fibridge. It has 24* 10/100/1000 Mbps Ethernet interface and 2*Gigabit FX. The device is built-in power module, you can choose 220V AC input or 48-56V DC input.The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet. The series' working temperature is 0ºC to +70ºC,10%~90(no condensation). PoE+ function is optional.

F6C-5800-24GT2S 24-Port Gigabit Fx + 2-Port Gigabit Tx Unmanaged Switch Specification

Network Characteristics
Ethernet Protocol	Support IEEE802.3/802.3u/802.3x/802.3Z/802.3AB, storage-and-forward
Flow Control	IEEE802.3x flow control
Network Interface	OPT: 1000MBase-FX Single/multimode SC/FC/SFP ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	No
MAC Addresses	12K
Jumbo Frame	Max size 9k
Cache	4MB
Packet Buffer	56Gbps
Packet Forwarding Rate	41.664Mpps
Management	No
Optical Characteristics
Optical Interface	SC/FC/SFP(Optional)
Fiber Core Count	Single / Dual core transmission
Wavelength	1310nm/1550nm(850nm)
Fiber Mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature: 0ºC to +70ºC Storage temperature: -40ºC to 85ºC Working humidity:10%-90% RH No condensation Storage humidity: 5%-90% RH No condensation

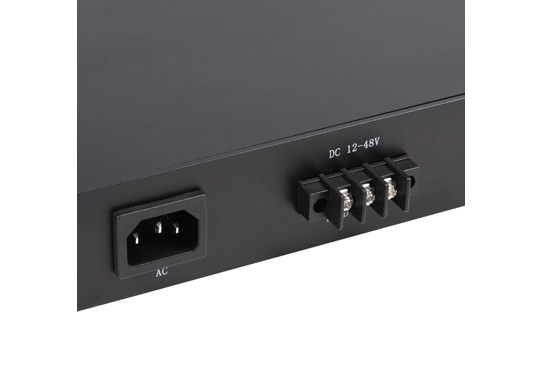

Power	AC 100-240V/50-60Hz embedded switch power, DC48~56V 260W external DC power(PoE) DC12V 1A external DC power (Not PoE)
MTBF	≥100000 hours

F6C-5800-24GT2S 24-Port Gigabit Fx + 2-Port Gigabit Tx Unmanaged Switch Features

Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.3at/802.3af/802.1p forward mode
Reliable performance
Support Port auto-negotiation
Support flow control
Modular design make the equipment reliable and flexible
Support overload protection
Reverse connect protection is supported
Support optical port hot plug
PoE+ optional
ISO9000 Qualified
Pass test by Ministry of Public Security
Obtain network qualification certificate

Ordering Information of F6C-5800-24GT2S 24-Port Gigabit Fx + 2-Port Gigabit Tx Unmanaged Switch

Model

Port

F6C-5800-24GT2S

24*10/100/1000MBase-T(X) auto adapt RJ45

2*1000MBase-FX SFP

F6C-5800-24GTP2S

24*IEEE802.3at/af standard PoE

2*1000MBase-FX SFP
