Name: F6-5800-8P Unmanged 8 Port 1G PoE Industrial Switch
Brand: Beijing Fibridge Co., Ltd.

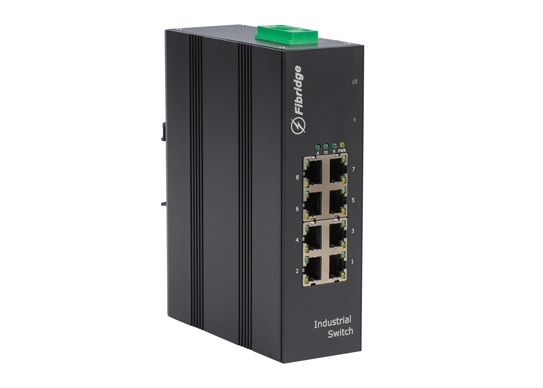

F6-5800-8P Unmanged 8 Port 1G PoE Industrial Switch

Fibridge F6-5800-8P series network industrial switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has 8* 10/100/1000 mbps Ethernet PoE interface.

The device is built-in power module, you can choose 220V AC input or DC12-57V input products.The switch supports PoE+, applies 40-57VDC power supply, supports 1*af/at/bt and 7*af/at.

The device operates at a temperature of -40ºC~+85ºC Range and a humidity of %10~%90(No condensation).The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet.

Specification of F6-5800-8P Unmanged 8 Port 1G PoE Industrial Switch

Network Characteristics
Ethernet Protocol	Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3at/802.3af/802.1p storage and forward mode
Flow Control	IEEE802.3x flow control, back pressure flow control
Network Interface	OPT: None
Network Interface	ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	No
MAC Addresses	8K
Jumbo Frame	No
Cache	No
Packet Buffer	16Gbps
Packet Forwarding Rate	11.904Mpps
Management	No
Optical Characteristics
Optical Interface	None
Fiber Core Count
Wavelength
Fiber Mode
Environmental Characteristics
Temperature & Humidity	Working temperature: -40ºC~85ºC
	Storage temperature:-40ºC~85ºC
	Working humidity:10%~90% RH No condensation
	Storage humidity:5%~90% RH No condensation

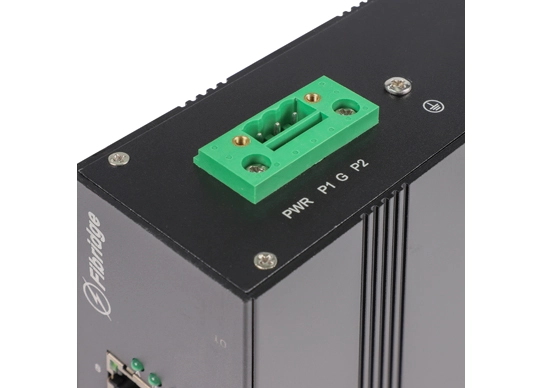

Power	AC 100-240V/50-60Hz Built-in switching power supply,
	DC40-57V 3A (PoE)
	DC12-57V 1A External power supply(not PoE)
MTBF	≥100000 hours

Features of F6-5800-8P Unmanged 8 Port 1G PoE Industrial Switch

Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3at/802.3af/802.1p storage and forward mode;
Meet the requirements of reliable work in harsh electrical environment;
Support Port auto-negotiation;
Industrial &Modular design make the equipment reliable and flexible;
Support overload protection;
The switch supports PoE+, applies 40-57VDC power supply, supports 1*af/at/bt and 7*af/at.
Reverse-link protection is supported;
Support optical port hot plug;
Level of protection:IP40;
ISO9000 qualified;
Product Passes testing of the Ministry of Public Security;
Product obtains network qualification certificate.

Ordering Information of F6-5800-8P Unmanged 8 Port 1G PoE Industrial Switch

Model	Description	Management
F6-5800-8P	1* 10/100/1000M af/at/bt port 7* 10/100/1000M af/at ports	None
